Furniture Hinges

Cruciform mounting plate for Tiomos - 348.38.513

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate for Tiomos - 348.38.513 by Hafele — A durable mounting solution for concealed hinges.

Properties

Product Code: 348.38.513
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
348.38.513_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

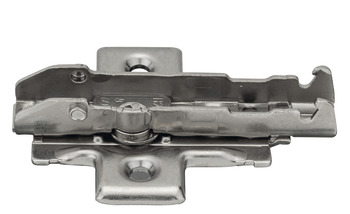

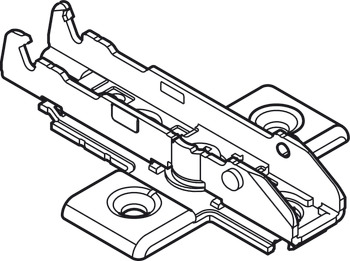

The Cruciform mounting plate for Tiomos - 348.38.513 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from durable steel and features a nickel plating for added protection. Its design is optimized to be compatible with Grass Tiomos concealed hinges, ensuring a reliable and efficient installation process. The product comes with a clip system for easy mounting and can be secured using wood screws.

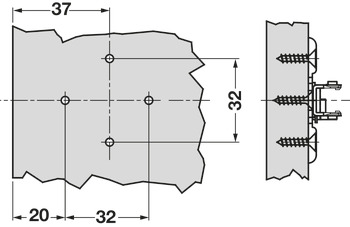

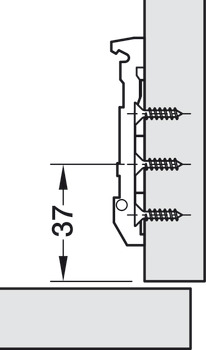

Height adjustment is possible via a worm gear system, allowing for a ±2 mm adjustment, which provides flexibility during installation. With a screw distance of 32 mm and an edge distance of 37 mm, this product is ideal for quick and secure mounting. These features make the installation process both fast and reliable.

This mounting plate provides an excellent solution for both professional and hobby users. Designed to simplify installation processes, it embodies Hafele's commitment to quality and reliability.
