Furniture Hinges

Cruciform mounting plate, For module 95° - 342.49.710

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate, For module 95° - 342.49.710 by Hafele — A reliable solution for mounting wooden doors.

Properties

Product Code: 342.49.710
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
342.49.710_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

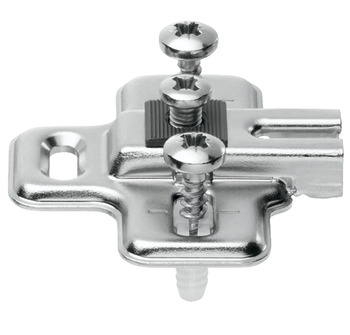

The Cruciform mounting plate, For module 95° - 342.49.710 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to provide high performance and durability for wooden door installations. Made from steel and finished with nickel plating, it offers both aesthetic appeal and long-lasting use.

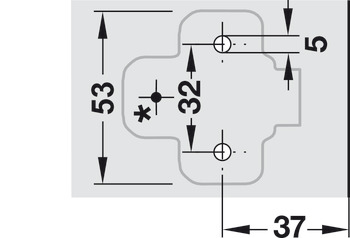

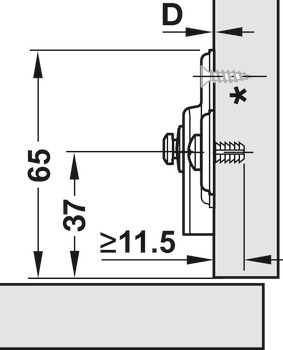

With a drill hole diameter of 5 mm and a drilling depth of 11.50 mm, it ensures easy installation. The screw distance of 32 mm and edge distance of 37 mm provide flexibility during mounting. Height adjustment of ±2 mm and angle adjustment facility of ≥95° enhance user convenience. The slide-on system makes fixing even simpler.

The Cruciform mounting plate stands out with its high-quality materials and user-friendly design. This product simplifies your mounting processes while providing a durable solution.
