Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.21.488

HAFELE

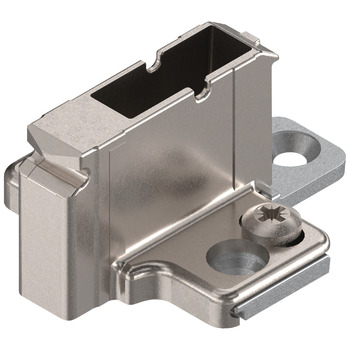

Cruciform mounting plate, Clip Top Blumotion - 342.21.488 by Hafele — An ideal mounting solution for corner applications.

Properties

Product Code: 342.21.488
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
342.21.488_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

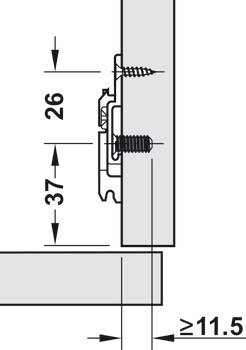

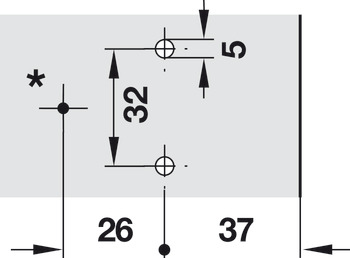

The Cruciform mounting plate, Clip Top Blumotion - 342.21.488 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed for corner applications and is made from high-quality zinc alloy. It features a nickel plating for enhanced durability. The product is suitable for drill holes of 5 mm in diameter and requires a drilling depth of 11.50 mm. With a screw distance of 32 mm and an edge distance of 37 mm, installation is straightforward.

Offering height adjustment capability via a screw of ±2 mm, this mounting plate is secured using a clip system and is designed for screw fixing with Euro screws. It is compatible with Blum's Clip Top Blumotion, Clip Top, and Clip series concealed hinges, providing significant ease during installation.

The Cruciform mounting plate, Clip Top Blumotion - 342.21.488 stands out with its high-quality materials and practical use. It offers a reliable mounting solution with Hafele's quality.
