Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.21.433

HAFELE

Cruciform mounting plate, Clip Top Blumotion - 342.21.433 by Hafele — An excellent mounting solution for corner applications.

Properties

Product Code: 342.21.433
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
342.21.433_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

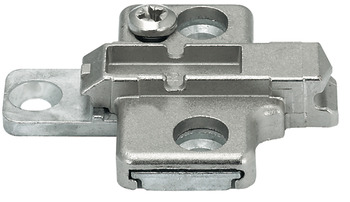

The Cruciform mounting plate, Clip Top Blumotion - 342.21.433 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for corner applications and is compatible with angled wedges. Made from zinc alloy, it offers durability and longevity. The nickel-plated surface not only provides an aesthetic appeal but also protects against rust and wear.

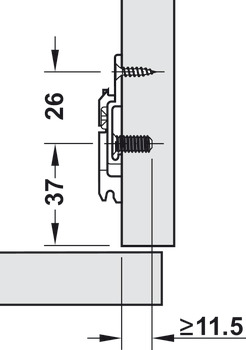

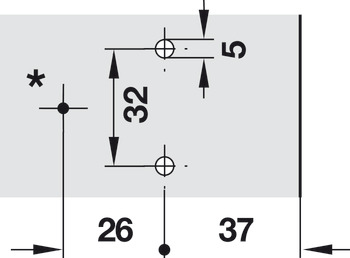

With a drill hole diameter of 5 mm and a drilling depth of 11.50 mm, the product facilitates easy installation. The screw distance of 32 mm and edge distance of 37 mm make it ideal for standard mounting. Height adjustment is possible via a screw with a ±2 mm range. The clip system mounting method speeds up the installation process and ensures ease of use. The mounting plate version is designed for screw fixing with Euro screws, ensuring a secure fit.

The Cruciform mounting plate stands out for its ease of installation and durability. With Hafele's quality, it provides a secure and aesthetic mounting experience.
