Cruciform mounting plate, Clip Top Blumotion - 342.21.095
Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.21.095

HAFELE

Drawing Files Technical Documents

Cruciform mounting plate, Clip Top Blumotion - 342.21.095 by Hafele — A reliable solution for hinge mounting.

Properties

Product Code: 342.21.095
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • ISO_9001_TR
  • Güvenlik Notları--Security Notes
  • 342.21.095_Safety notes
  • ISO_9001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

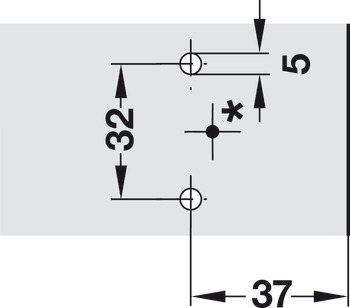

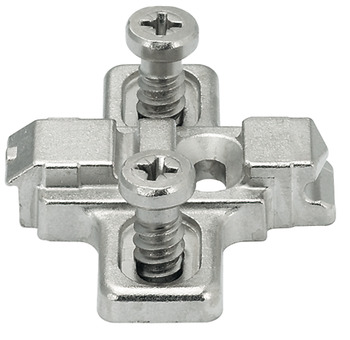

The Cruciform mounting plate, Clip Top Blumotion - 342.21.095 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to work seamlessly with Blum Clip Top Blumotion concealed hinges, ensuring a perfect fit. Made from zinc alloy and finished with nickel plating, it offers enhanced durability and resistance to wear. With a drill hole diameter of 5 mm, it provides flexibility for various applications and a screw distance of 32 mm for easy installation.

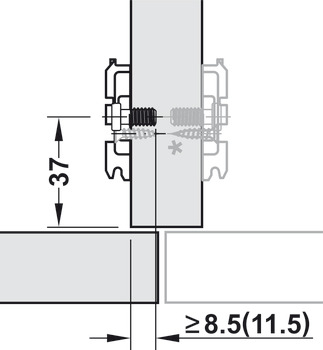

The edge distance of 37 mm allows for versatile mounting options, while the height adjustment feature via a ±3 mm slot adds convenience during installation. This product is designed for screw fixing with pre-mounted Euro screws, making the mounting process quick and efficient.



The Cruciform mounting plate, Clip Top Blumotion - 342.21.095 stands out for its ease of use and reliability, making it a preferred choice for efficient hinge mounting.
