Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.21.074

HAFELE

Cruciform mounting plate, Clip Top Blumotion - 342.21.074 by Hafele — an ideal mounting solution for Blum Clip Top Blumotion hinges.

Properties

Product Code: 342.21.074
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
342.21.074_Safety notes
ISO_9001_TR
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

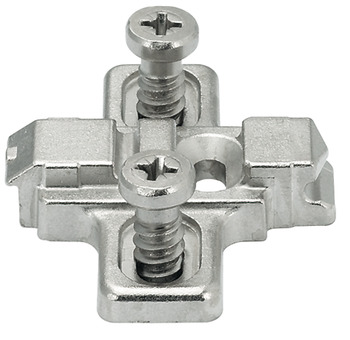

The Cruciform mounting plate, Clip Top Blumotion - 342.21.074 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Blum Clip Top Blumotion concealed hinges, making the installation process seamless and efficient. Made from zinc alloy, it features a nickel-plated finish that enhances durability and longevity.

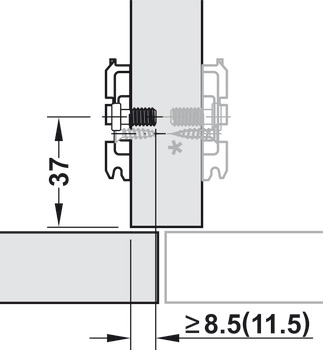

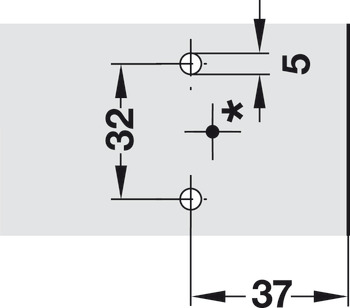

The plate accommodates a drill hole diameter of 5 mm, with a screw distance of 32 mm and an edge distance of 37 mm, providing practical mounting options. Height adjustment is facilitated through a ±3 mm slot, allowing precise adjustments during installation. The product also supports screw fixing with pre-mounted Euro screws, significantly reducing installation time.

The Cruciform mounting plate simplifies installation processes and saves time. With Hafele's quality, this product is an excellent choice for both professional and amateur users.
