Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.20.983

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate, Clip Top Blumotion - 342.20.983 by Hafele — a reliable mounting solution for Blum hinges.

Properties

Product Code: 342.20.983
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
342.20.983_Safety notes
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

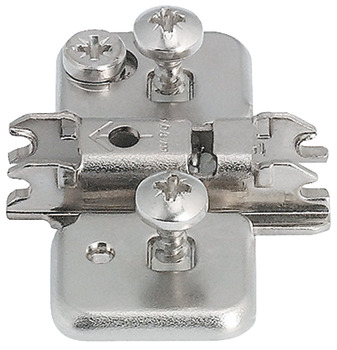

The Cruciform mounting plate, Clip Top Blumotion - 342.20.983 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed specifically for Blum Clip Top Blumotion concealed hinges, making installation straightforward and efficient. Made from durable steel, it ensures long-lasting performance.

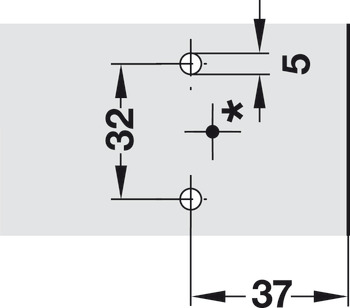

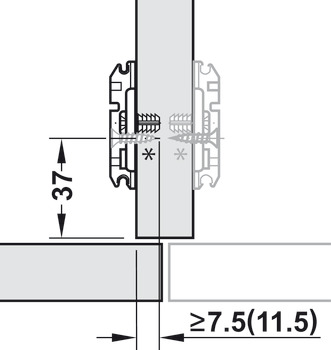

With a drill hole diameter of 5 mm, a screw distance of 32 mm, and an edge distance of 37 mm, it provides precise fitting. The height adjustment feature allows for an eccentric adjustment of ±2 mm, enhancing flexibility during installation. The clip system facilitates easy mounting, and it comes with pre-mounted special screws and spreading dowels, streamlining the setup process.

The Cruciform mounting plate stands out for its unique strengths, making it an essential tool for any installation project.
