Cruciform mounting plate, Clip Top Blumotion - 342.20.970

HAFELE

Cruciform mounting plate, Clip Top Blumotion - 342.20.970 by Hafele — an excellent mounting solution for Blum Clip Top Blumotion hinges.

Properties

Product Code: 342.20.970
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR
ISO_9001_ENG
342.20.970_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

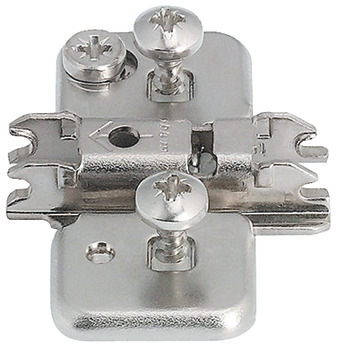

The Cruciform mounting plate, Clip Top Blumotion - 342.20.970 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Blum Clip Top Blumotion concealed hinges, making installation remarkably straightforward. Made from durable steel, it ensures a long-lasting performance.

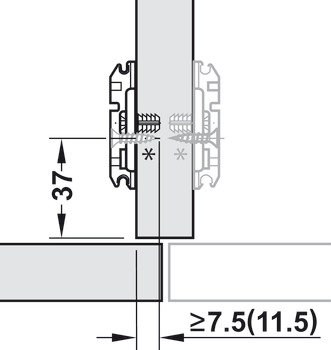

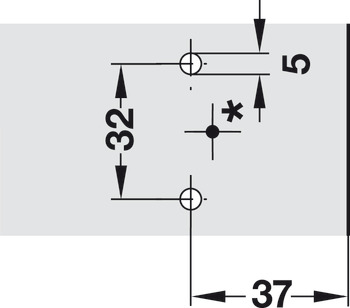

With a drill hole diameter of 5 mm, it accommodates a screw distance of 32 mm and an edge distance of 37 mm, providing flexibility for various installation needs. The height adjustment feature allows for a ±2 mm adjustment, making it easier to achieve the perfect fit. The clip system fixing method simplifies the installation process significantly.

This mounting plate stands out due to its ease of installation and reliability, making it a preferred choice for users seeking quality and efficiency.
