Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.20.953

HAFELE

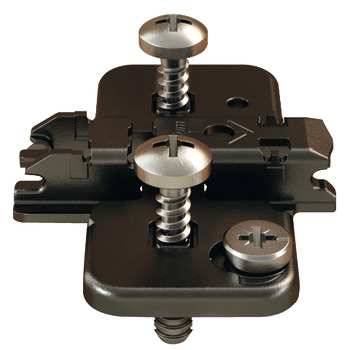

Cruciform mounting plate, Clip Top Blumotion - 342.20.953 by Hafele — This product offers an excellent mounting solution for Blum Clip Top Blumotion hinges.

Properties

Product Code: 342.20.953
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
342.20.953_Safety notes
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

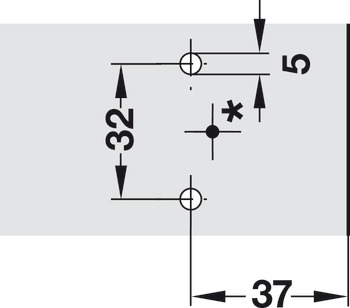

The Cruciform mounting plate, Clip Top Blumotion - 342.20.953 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Blum Clip Top Blumotion hinges, providing ease of installation. Made from durable steel, it features a drill hole diameter of 5 mm, ensuring compatibility with standard fittings.

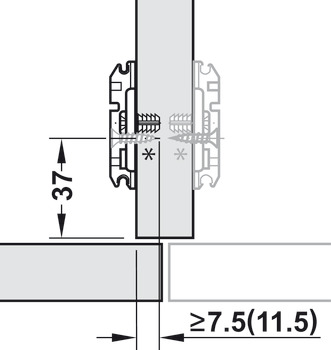

With a screw distance of 32 mm and an edge distance of 37 mm, the mounting plate allows for precise installation. Height adjustment is facilitated via an eccentric mechanism, allowing for ±2 mm of adjustment. Additionally, the plate is designed for screw fixing with pre-mounted special screws and spreading dowels, making it quick and easy to install.

This mounting plate is ideal for both professional and DIY users. Its durable construction and ease of installation make it a reliable choice for any mounting task. With Hafele's commitment to quality, this product stands out as a dependable solution for your mounting needs.
