Furniture Hinges

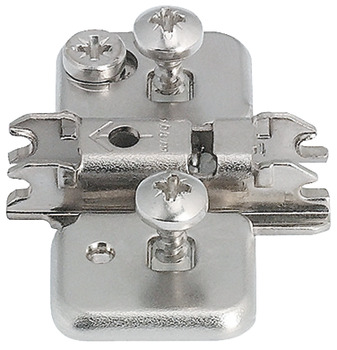

Cruciform mounting plate, Clip Top Blumotion - 342.20.930

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate, Clip Top Blumotion - 342.20.930 by Hafele — an ideal mounting solution for Blum hinges.

Properties

Product Code: 342.20.930
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
342.20.930_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate, Clip Top Blumotion - 342.20.930 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Blum Clip Top Blumotion concealed hinges, making installation easier and more efficient. Made from durable steel, it ensures a secure fit with a drill hole diameter of 5 mm.

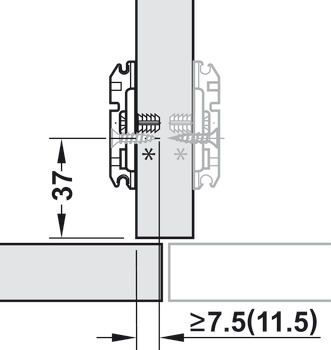

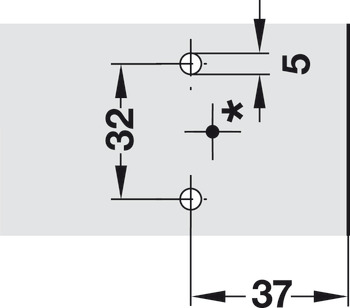

The mounting plate features a screw distance of 32 mm and an edge distance of 37 mm, allowing for precise installations. With its eccentric mechanism, height adjustment of ±2 mm is possible, providing flexibility during setup. Additionally, it is designed for screw fixing with pre-mounted special screws and spreading dowels, ensuring a reliable attachment.

This product is suitable for full overlay and half overlay mounting types, as well as inset mounting options. The Cruciform mounting plate allows for quick and reliable installation, making it a preferred choice among users.

Hafele's product stands out for its ease of use and durability. Combining quality and functionality, this mounting plate is an excellent solution for your mounting needs.
