Furniture Hinges

Cruciform mounting plate, Clip Top Blumotion - 342.20.101

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate, Clip Top Blumotion - 342.20.101 by Hafele — an ideal mounting solution for Blum hinges.

Properties

Product Code: 342.20.101
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
342.20.101_Safety notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

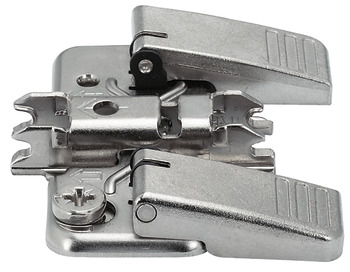

The Cruciform mounting plate, Clip Top Blumotion - 342.20.101 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Blum Clip Top Blumotion concealed hinges, making the installation process easier with numerous advantages. The product is made of durable steel and features a nickel plating that ensures a long-lasting use.

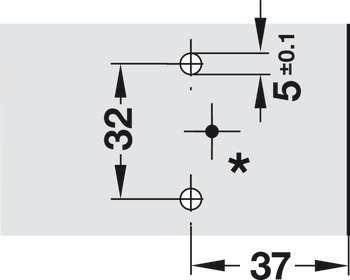

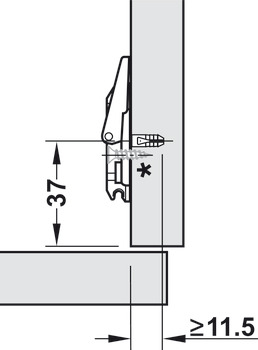

Equipped with a self-closing mechanism, the cruciform mounting plate ensures that doors close properly, providing extra comfort during use. With a drill hole diameter of 5 mm and a drilling depth of 11.50 mm, installation is straightforward. Additionally, it has a screw distance of 32 mm and an edge distance of 37 mm, allowing for seamless operation.

The Cruciform mounting plate stands out in your mounting tasks, providing significant ease. With Hafele's quality, this mounting plate is an ideal choice to enhance the functionality of your furniture.
