Cruciform mounting plate - 311.71.602

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate - 311.71.602 by Hafele — A product that provides practicality in assembly processes.

Properties

Product Code: 311.71.602
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
311.71.602_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

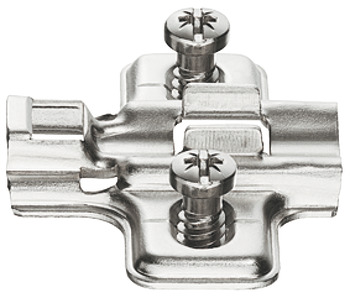

The Cruciform mounting plate - 311.71.602 by Hafele represents a refined fusion of quality and functionality. Made from durable steel and protected with nickel plating, this mounting plate is designed to be compatible with Häfele Metalla 300 concealed hinges. Its user-friendly features allow for quick and easy assembly processes.

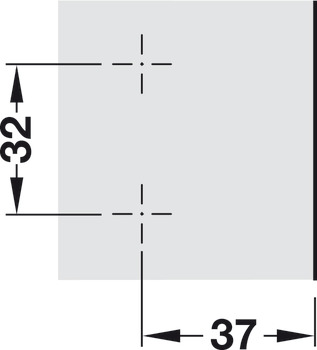

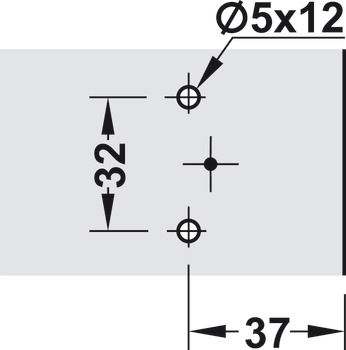

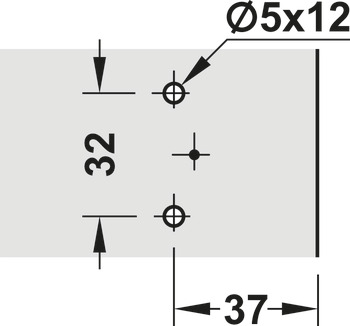

This mounting plate features a drill hole diameter of 5 mm, accommodating standard mounting needs. With a screw distance of 32 mm, it adapts to various mounting scenarios. The height adjustment feature via slot allows for precise adjustments of ±2 mm during installation. Equipped with a quick fixing system SM, it significantly reduces assembly time.

The Cruciform mounting plate offers a reliable solution for your assembly needs. With Hafele's quality, this product should be preferred in any furniture project.
