Furniture Hinges

Cruciform mounting plate - 311.71.560

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate - 311.71.560 by Hafele — A practical solution that simplifies mounting processes.

Properties

Product Code: 311.71.560
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
311.71.560_Safety notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

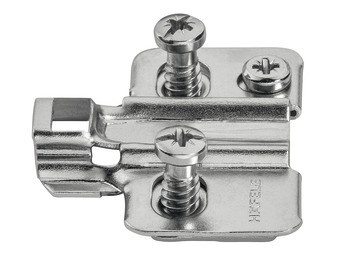

The Cruciform mounting plate - 311.71.560 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of robust steel and features a nickel plating for long-lasting use. Its design allows for quick and easy installation, minimizing time loss during the mounting process.

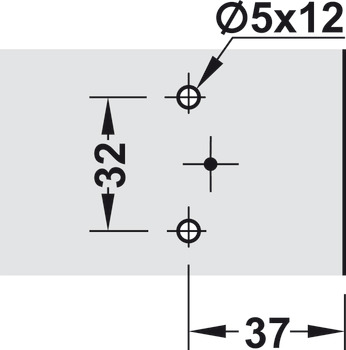

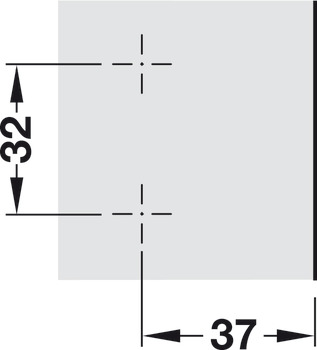

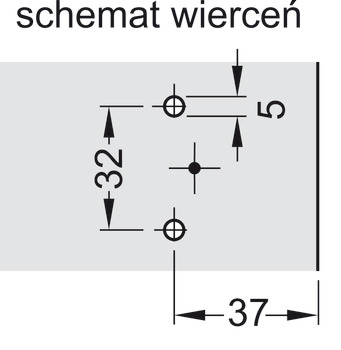

The cruciform mounting plate is compatible with a drill hole diameter of 5 mm and has a screw distance of 32 mm, making it ideal for standard hinge installations. It includes a ±2 mm slot for height adjustment, allowing for precise settings during installation. The quick fixing system SM further speeds up the mounting process.

The cruciform mounting plate stands out with its ease of use and practicality. It is an ideal solution that meets the needs of users, combined with Hafele's quality.
