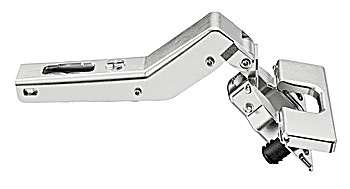

Concealed hingeMetalla 510 SM 94°, for 45° corner application, half overlay - 329.13.335 by Hafele — This product is specially designed for 45° corner applications and features an automatic closing function for user convenience. Made from high-quality steel and zinc alloy, it ensures long-lasting durability.
Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
High durability
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

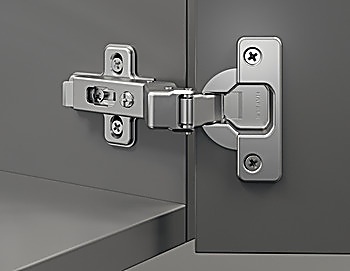

The Concealed hingeMetalla 510 SM 94°, for 45° corner application, half overlay - 329.13.335 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for wooden doors, offering an opening angle of 94°. Constructed from steel and zinc alloy, it provides both durability and longevity. The automatic closing spring ensures that the door closes smoothly every time.

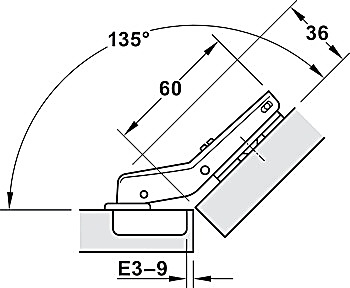

This concealed hinge is ideal for 45° corner applications. With an 11 mm cup drilling depth, it simplifies installation. The quick fixing system SM allows for easy mounting of doors onto cabinets. The adjustment features include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment of -0.5/+2.8 mm, providing flexibility for precise installation.
The Concealed hingeMetalla 510 SM stands out with its automatic closing feature and high-quality materials. This product offers a reliable solution for your furniture projects.
