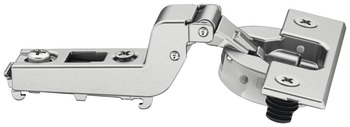

Concealed hingeMetalla 510 SM 105°, inset mounting - 329.14.312 by Hafele — designed for standard applications, this hinge offers a high opening angle for optimal functionality. Its durable steel construction ensures long-lasting performance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
329.14.312_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 SM 105°, inset mounting - 329.14.312 by Hafele represents a refined fusion of quality and functionality. Designed for standard applications, this hinge allows for a high opening angle of 105°, making it ideal for various furniture designs. The durable steel material ensures longevity, while the nickel plating adds an elegant finish.

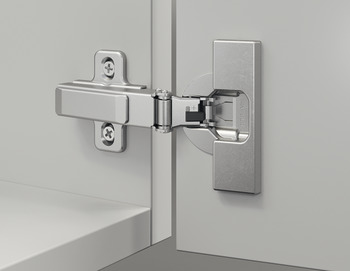

This concealed hinge features an inset mounting style that enhances the aesthetic appeal of cabinets and doors. Its high cranked design facilitates smooth operation, and the quick fixing system allows for easy installation. The adjustment facilities include side adjustment of -1.5/+3 mm, height adjustment of ±2 mm, and depth adjustment of 0/+2.8 mm, ensuring precise alignment during installation.
The Concealed hingeMetalla 510 SM 105° stands out for its unique combination of functionality and style, making it a preferred choice for furniture applications.
