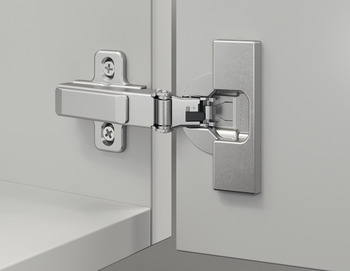

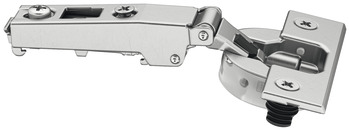

Concealed hingeMetalla 510 SM 105°, full overlay mounting - 329.14.110 by Hafele — This hinge is designed for a seamless door closure, providing full overlay functionality. Made from durable steel, it ensures longevity and reliability.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
329.14.110_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 SM 105°, full overlay mounting - 329.14.110 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for standard applications, providing a full overlay feature that allows doors to close seamlessly. Made from steel with a nickel-plated finish, it not only ensures durability but also adds a sleek look to your furniture.

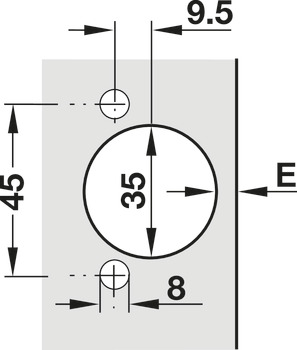

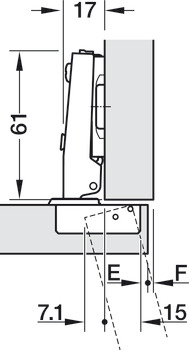

With an opening angle of 105°, it allows doors to open wide for easy access. The cup drilling depth of 12 mm facilitates straightforward installation. Additionally, it features side adjustment of -1.5/+3 mm, height adjustment of ±2 mm, and depth adjustment of 0/+2.8 mm, making it highly adaptable during installation.
The Concealed hingeMetalla 510 SM is an excellent solution that combines aesthetics and functionality, making it a preferred choice for various door applications.
