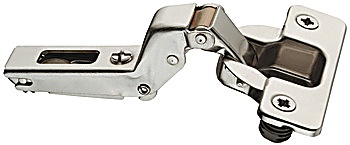

Concealed hingeMetalla 510 push A/SM 110°, inset mounting - 329.17.913 by Hafele — This hinge allows for tip-on opening, providing effortless access to your cabinets. Made from durable steel, it ensures a long-lasting performance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

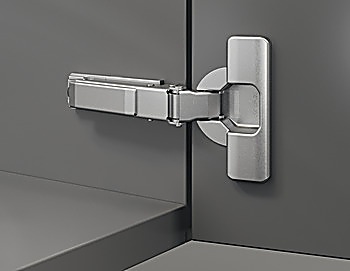

The Concealed hingeMetalla 510 push A/SM 110°, inset mounting - 329.17.913 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for tip-on opening, allowing doors to open automatically with ease. Its high cranked design makes it ideal for wooden doors, ensuring both aesthetic appeal and practicality. Made from durable steel, it guarantees longevity and reliability.

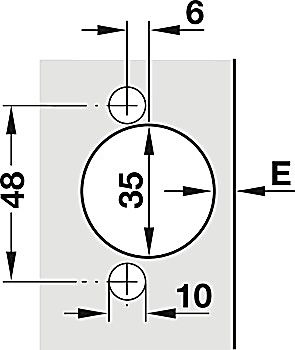

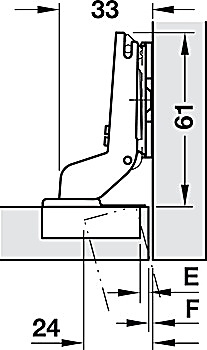

With an opening angle of 110°, the hinge allows for full access to cabinet interiors. The cup drilling depth of 11 mm and a cup drilling diameter of 35 mm make installation straightforward and compatible with various setups. The hinge also offers adjustment facilities, including side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm and Metalla 510 SM mounting plates from -0.5/+2.8 mm.
The Concealed hingeMetalla 510 stands out with its automatic opening mechanism and high-quality steel construction. Its durability and ease of installation make it an excellent choice for your furniture projects.
