Furniture Hinges

Concealed hingeMetalla 510 push A/SM 110°, full overlay mounting - 329.17.810

HAFELE

Concealed hingeMetalla 510 push A/SM 110°, full overlay mounting - 329.17.810 by Hafele — Experience effortless door operation with its automatic opening mechanism.

Properties

Product Code: 329.17.810
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR
329.17.810_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

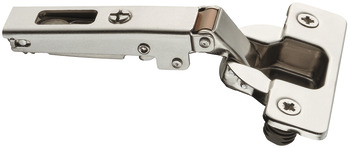

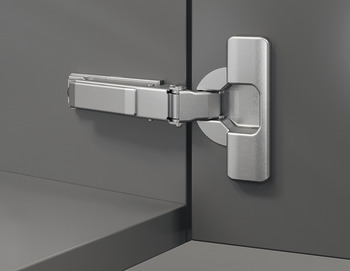

The Concealed hingeMetalla 510 push A/SM 110°, full overlay mounting - 329.17.810 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for full overlay mounting and features an automatic opening mechanism that allows for effortless access to your cabinets. Made from durable steel, it is specifically designed for wooden doors, ensuring a robust solution for your furniture needs.

With an opening angle of 110°, it provides a wide access area, while the cup drilling specifications of 11 mm depth and 35 mm diameter make installation straightforward. The hinge offers various adjustment options, including side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, and with Metalla 510 SM mounting plates from -0.5/+2.8 mm, allowing for customization according to user needs. The installation can be done using either the A slide-on system or the SM quick fixing system.

The Concealed hingeMetalla 510 stands out with its user-friendly design and durability, making it a preferred choice for modern furniture applications.
