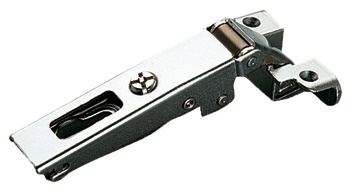

Concealed hingeMetalla 510 push A/SM 105°, full overlay mounting - 329.23.810 by Hafele — Designed for handle-free opening, this hinge features an automatic opening mechanism for user convenience. Its durable materials ensure long-lasting performance.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): 1.7
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
329.23.810_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

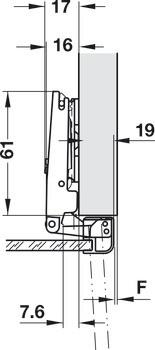

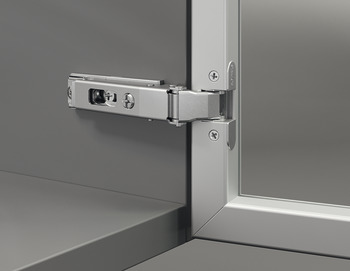

The Concealed hingeMetalla 510 push A/SM 105°, full overlay mounting - 329.23.810 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for narrow aluminum frames ranging from 17 to 24 mm, providing a seamless solution for handle-free opening with its automatic opening mechanism. The full overlay mounting feature minimizes the visibility of the hinge, enhancing the overall aesthetic appeal.
Constructed from high-quality materials, the hinge arm is made of steel while the cup is crafted from zinc alloy, ensuring durability and longevity. With an opening angle of 105°, it offers a wide access area, making it easy to open doors. Installation is straightforward; the door can be mounted using either the slide-on system A or the quick fixing system SM, with fixing screws available for separate order.
The Concealed hingeMetalla 510 offers a perfect blend of aesthetics and functionality, making it an ideal choice for modern interiors. With Hafele's commitment to quality, this hinge stands out as a reliable and efficient solution for various applications.
