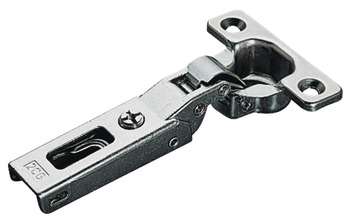

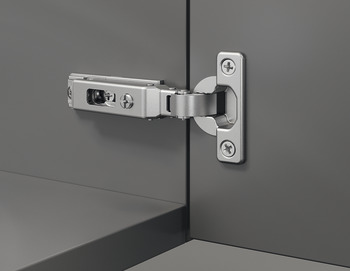

Concealed hingeMetalla 510 Mini A/SM 94°, half overlay mounting/twin mounting - 329.41.502 by Hafele — An excellent solution for small doors and narrow frames. Made from durable steel and zinc alloy materials.
Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
High durability
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
329.41.502_Safety notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 Mini A/SM 94°, half overlay mounting/twin mounting - 329.41.502 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for small doors and narrow frames, ensuring that it meets the needs of compact spaces. Constructed from steel and zinc alloy, this product promises durability and long-lasting performance. Its automatic closing spring feature guarantees that doors close securely every time.

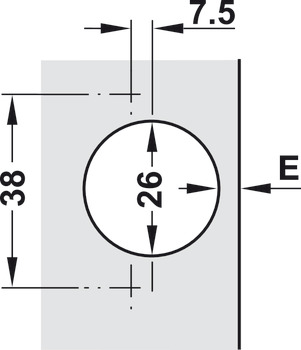

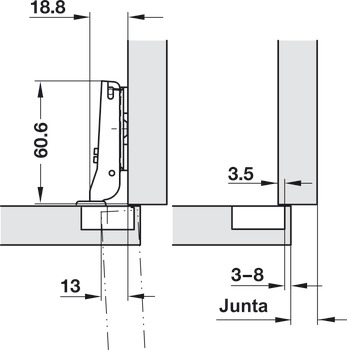

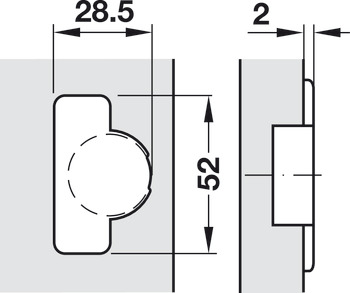

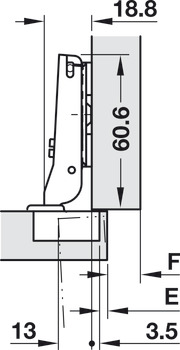

With options for half overlay mounting and twin mounting, this hinge provides flexibility in installation. The 94° opening angle allows for ample access, making it suitable for various applications. The cup drilling specifications of 11.50 mm depth and 26 mm diameter make installation straightforward. Additionally, the adjustment facilities enhance user convenience, allowing side adjustment of -0.5/+5.5 mm, height adjustment of ±2 mm, and depth adjustment with mounting plates.
Hafele's Concealed hingeMetalla 510 Mini A/SM 94° stands out with its durability and functionality. This product is a reliable choice for any furniture application.
