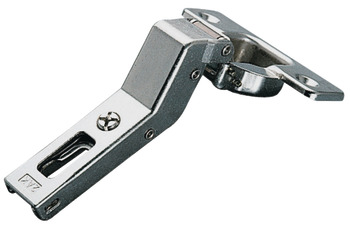

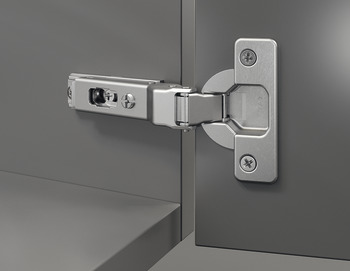

Concealed hingeMetalla 510 A/SM 94°, for 37° corner applications - 329.96.604 by Hafele — This hinge provides an excellent solution for corner applications, ensuring doors close automatically. Made from durable steel and zinc alloy, it offers long-lasting and reliable use.
Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG
329.96.604_Safety notes
ISO_27001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

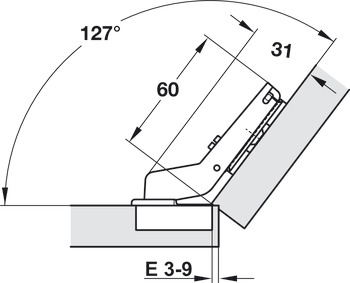

The Concealed hingeMetalla 510 A/SM 94°, for 37° corner applications - 329.96.604 by Hafele represents a refined fusion of quality and functionality. This hinge is specially designed for 94° opening angle and 37° corner applications. Made from steel and zinc alloy, it ensures high durability and longevity. The automatic closing spring feature guarantees that doors close smoothly every time.

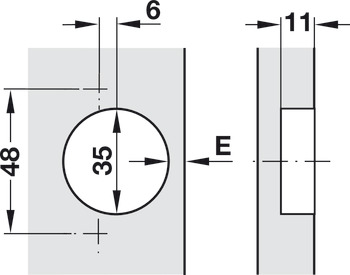

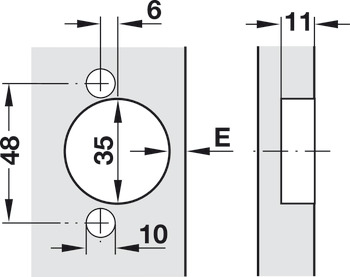

This product is suitable for wooden doors and is easy to install. The required cup holes are drilled at a diameter of 35 mm and a depth of 11 mm. The hinge is designed for screw fixing and follows a drilling pattern of 48/6. Side adjustment is possible up to <4.5 mm, height adjustment ±2 mm, and depth adjustment can be made with Metalla 510 A mounting plates by +2.8 mm and with Metalla 510 SM mounting plates from -0.5/+2.8 mm.
The Concealed hingeMetalla 510 A/SM stands out with its excellent design and functionality. It is an ideal choice for those seeking a reliable and long-lasting solution.
