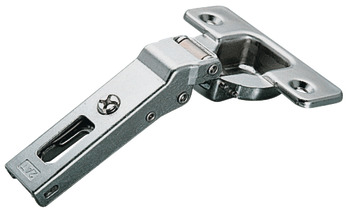

Concealed hingeMetalla 510 A/SM 94°, for 30° corner applications, overlay - 329.96.603 by Hafele — This hinge is specially designed for corner applications, providing automatic closing functionality. Durable steel and zinc alloy materials ensure long-lasting use.
Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG
329.96.603_Safety notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

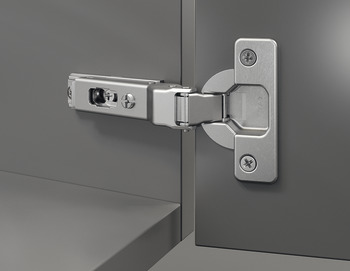

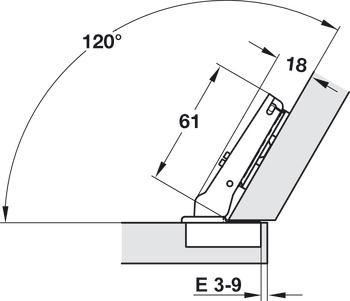

The Concealed hingeMetalla 510 A/SM 94°, for 30° corner applications, overlay - 329.96.603 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for corner applications, offering a 94° opening angle that provides users with a wide access area. The product features an automatic closing spring but does not include a soft closing mechanism. It is suitable for wooden door materials and is easy to install.

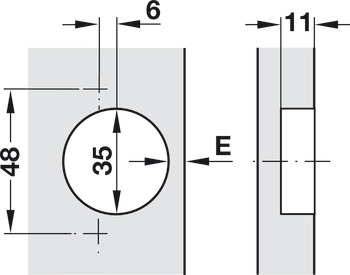

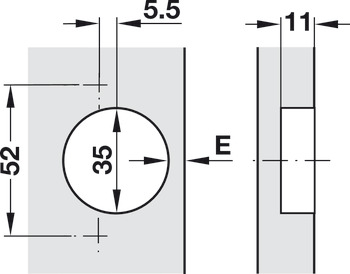

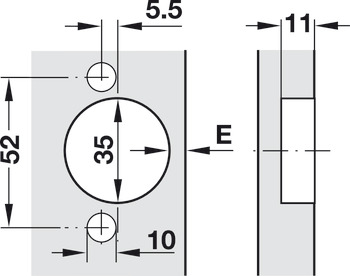

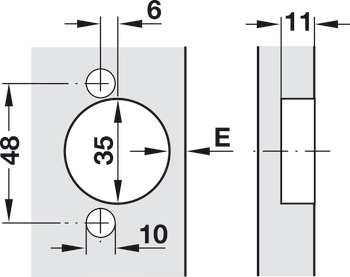

In terms of quality and durability, the hinge is made from steel and zinc alloy. It has a nickel-plated finish for an aesthetic appeal. The hinge requires a drilling depth of 11 mm and a drilling diameter of 35 mm, facilitating easy installation. Additionally, it offers screw fixing options for secure mounting. With adjustment capabilities, side adjustment is <4.5 mm, height adjustment ±2 mm, and depth adjustment can be made with Metalla 510 A mounting plates +2.8 mm, and with Metalla 510 SM mounting plates from -0.5/+2.8 mm.
Hafele's Concealed hingeMetalla 510 A/SM is an ideal choice for users seeking both aesthetics and functionality. Its long-lasting and quality construction makes it a reliable product.
