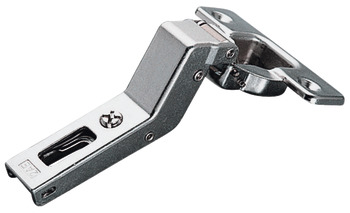

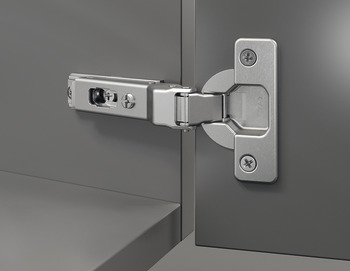

Concealed hingeMetalla 510 A/SM 94°, for 30° corner applications, half overlay - 329.96.602 by Hafele — This product provides an excellent half overlay solution for corner applications. Made from durable steel and zinc alloy, it ensures longevity.
Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
329.96.602_Safety notes
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

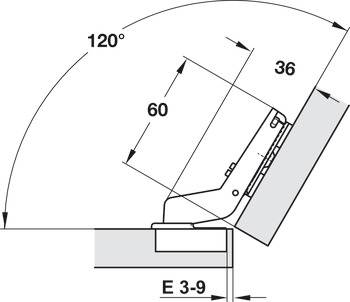

The Concealed hingeMetalla 510 A/SM 94°, for 30° corner applications, half overlay - 329.96.602 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for 30° corner applications with a 94° opening angle. Its automatic closing spring ensures that doors always close smoothly. In terms of material quality, the hinge cup is made of steel, while the hinge arm is crafted from zinc alloy, providing both durability and aesthetic appeal.

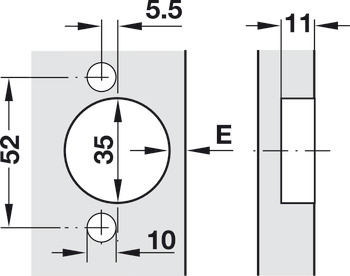

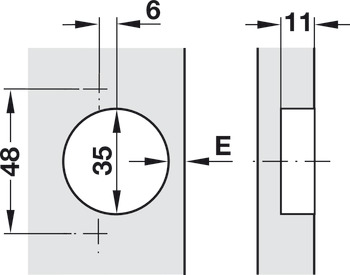

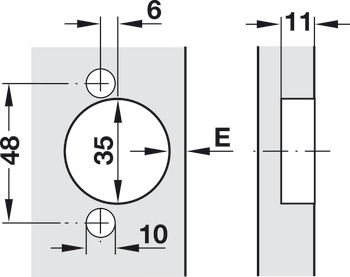

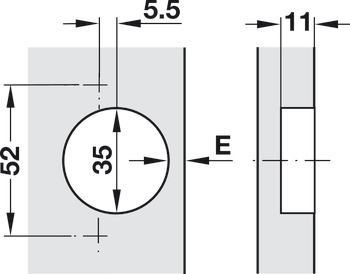

This concealed hinge comes with a specialized mounting system for easy installation on doors. It can be mounted using the slide-on system A or quick fixing system SM. Door processing requires cup drilling, making the installation process straightforward. Additionally, the cup drilling depth is 11 mm, and the diameter is 35 mm, ensuring precise and reliable mounting.
Hafele's Concealed Hinge Metalla 510 A/SM stands out for its aesthetic and functional design, making it a preferred choice for various interior designs. Its durability and user-friendly features make it a top choice.
