Concealed HingeMetalla 510 A/SM 94° - 329.05.666

HAFELE

Concealed HingeMetalla 510 A/SM 94° - 329.05.666 by Hafele — Designed for thick doors and profile doors, providing a 94° opening angle for enhanced usability. Durable steel construction ensures long-lasting performance.

Properties

Product Code: 329.05.666
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.05.666_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

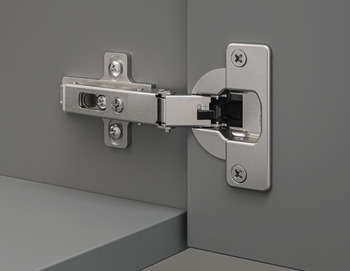

The Concealed HingeMetalla 510 A/SM 94° - 329.05.666 by Hafele represents a refined fusion of quality and functionality. Specifically designed for thick doors and profile doors, this hinge offers half overlay mounting and twin mounting options for flexibility. Made from steel, it ensures durability and longevity.

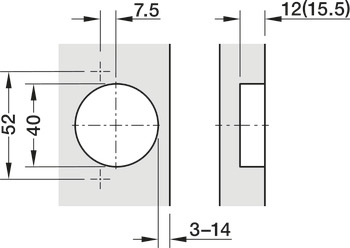

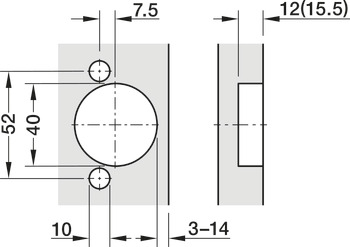

With a 94° opening angle, it allows doors to open wider, facilitating better accessibility. The hinge features a cup drilling of 40 mm, making installation straightforward. It also supports screw fixing for cup fixing and follows a drilling pattern of 52/7.5. Adjustment capabilities are impressive, with side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates at +2.8 mm, as well as with Metalla 510 SM quick fixing mounting plates at -0.5/+2.8 mm.

The Concealed HingeMetalla 510 A/SM 94° - 329.05.666 stands out with its unique features and advantages for users.
