Furniture Hinges

Concealed HingeMetalla 510 A/SM 94° - 329.05.661

HAFELE

Concealed HingeMetalla 510 A/SM 94° - 329.05.661 by Hafele — Ideal for thick and profile doors, providing seamless integration. Crafted from durable steel for long-lasting performance.

Properties

Product Code: 329.05.661
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
329.05.661_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

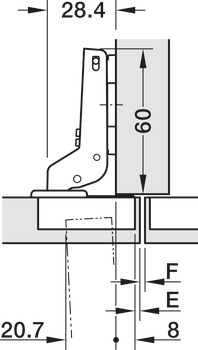

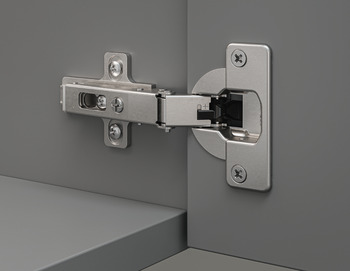

The Concealed HingeMetalla 510 A/SM 94° - 329.05.661 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for thick doors and profile doors, accommodating thicknesses up to 40 mm. It features half overlay and twin mounting options, offering flexibility for various applications. Made from steel, it ensures high durability and is nickel-plated for an aesthetic finish.

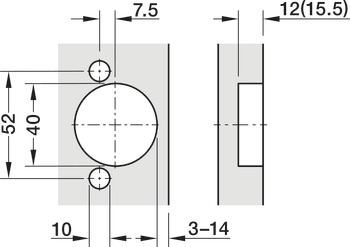

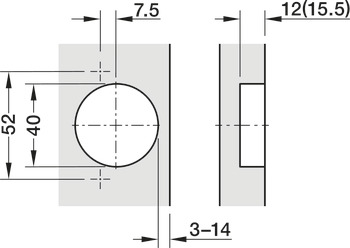

With an opening angle of 94°, it allows for wider door access, enhancing usability. The hinge has a cup drilling diameter of 40 mm and is screw-fixed for secure installation. The drilling pattern of 52/7.5 provides versatility in mounting. Adjustment facilities include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, as well as with Metalla 510 SM quick fixing mounting plates from -0.5/+2.8 mm. These features ensure ease of installation and adjustment.

The Concealed HingeMetalla 510 A/SM 94° - 329.05.661 stands out for its quality materials and practical usability, making it a preferred choice for those seeking long-lasting and stylish solutions.
