Furniture Hinges

Concealed hingeMetalla 510 A/SM 165°, inset mounting - 329.07.620

HAFELE

Concealed hingeMetalla 510 A/SM 165°, inset mounting - 329.07.620 by Hafele — an excellent solution for cabinets with internal pull outs or extending trays. Durable steel and zinc alloy materials ensure long-lasting use.

Properties

Product Code: 329.07.620
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

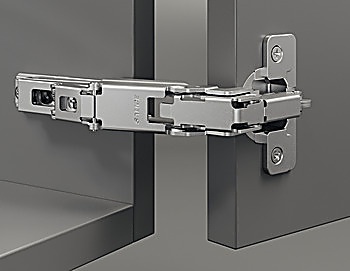

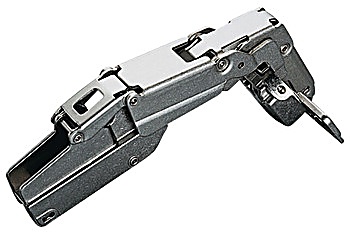

The Concealed hingeMetalla 510 A/SM 165°, inset mounting - 329.07.620 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for cabinets with internal pull outs or extending trays. Its high cranked design facilitates easy access while the automatic closing spring ensures doors close securely. Made from zinc alloy and steel, this hinge is built for durability.

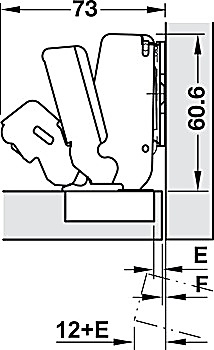

The hinge offers a 165° opening angle, providing a wide access area. With a cup drilling depth of 11 mm and a cup drilling diameter of 35 mm, installation is straightforward. Side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates up to +2.8 mm add flexibility for users.

The Concealed hingeMetalla 510 A/SM is crafted to meet user needs and is made from quality materials. Its durability and functionality make it a preferred choice.
