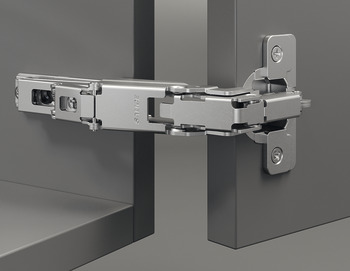

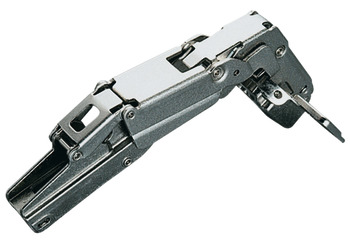

Concealed hingeMetalla 510 A/SM 165°, half overlay mounting/twin mounting - 329.07.702 by Hafele — Designed for cabinets with internal pull outs, this hinge features an automatic closing spring. Its durable materials ensure long-lasting use.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
329.07.702_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 165°, half overlay mounting/twin mounting - 329.07.702 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for cabinets with internal pull outs or extending trays, featuring an automatic closing spring that ensures doors close securely every time. The material quality is impressive, with the cup made from zinc alloy and the hinge arm constructed from steel, providing durability and reliability.

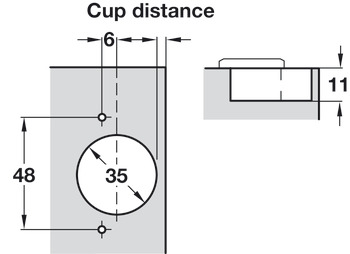

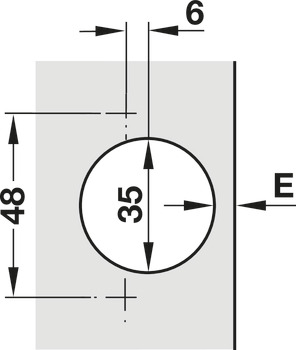

With an opening angle of 165°, this hinge allows for a wide access area. It requires a cup drilling depth of 11 mm and a diameter of 35 mm. The installation is straightforward, compatible with slide-on system A or quick fixing system SM, making it user-friendly. Additionally, the hinge offers side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment of +2.8 mm, enhancing the installation experience.
Hafele's Concealed hingeMetalla 510 A/SM 165° stands out with its durability and functionality, making it a reliable solution for your furniture projects.
