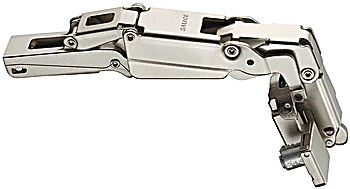

Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.770 by Hafele — Provides perfect closure for cabinets with internal pull-outs. Made from high-quality materials for long-lasting use.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

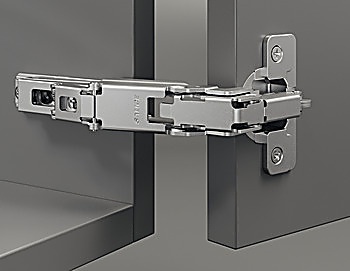

The Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.770 by Hafele represents a refined fusion of quality and functionality. This hinge ensures complete closure of cabinet doors while offering a 165-degree opening angle for ease of use. The product features a steel hinge arm and a zinc alloy cup, enhancing its durability.

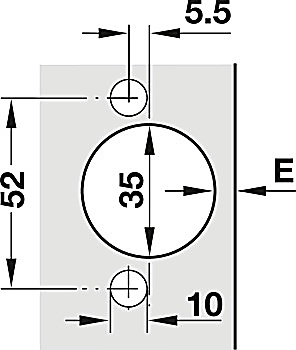

Equipped with an automatic closing spring, this hinge does not include a soft closing mechanism, making it ideal for quick access. The installation requires cup drilling with a diameter of 35 mm and a depth of 11 mm, ensuring a secure fit. Additionally, the adjustment options include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment capabilities.
The Concealed hingeMetalla 510 A/SM 165° stands out for its unique strengths, ensuring a perfect fit and durability in any cabinet application.
