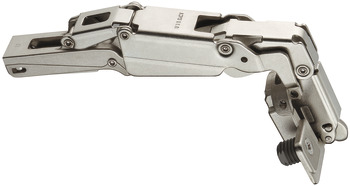

Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.760 by Hafele — This hinge is designed for cabinets with internal pull-outs or extending trays, providing secure closure with an automatic closing feature. Made from durable steel and zinc alloy, it ensures longevity.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
329.07.760_Safety notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

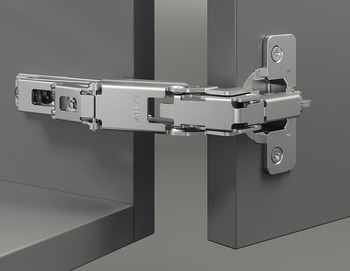

The Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.760 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for full overlay mounting, making it perfect for cabinets with internal pull-outs or extending trays. Its automatic closing spring ensures that doors close securely, enhancing safety. Made from zinc alloy and steel, it offers durability while the nickel plating provides an attractive finish.

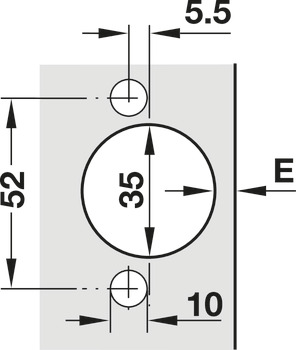

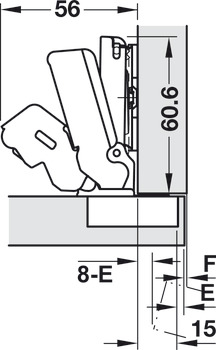

With an opening angle of 165°, it allows for wide door openings, while the cup drilling depth of 11 mm and a diameter of 35 mm make installation straightforward. The adjustment features include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm or with Metalla 510 SM plates from -0.5/+2.8 mm. The hinge is installed using either the slide-on system A or the quick fixing system SM.
The Concealed hingeMetalla 510 A/SM stands out as a reliable and aesthetically pleasing solution for those seeking secure and functional door hardware.
