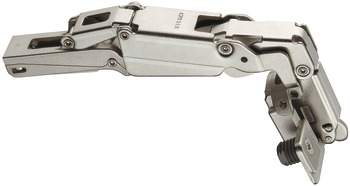

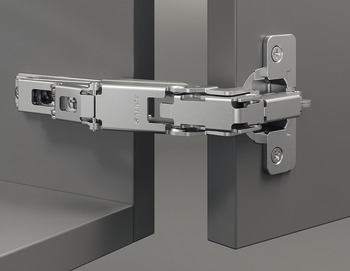

Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.750 by Hafele — Designed for wooden doors, this hinge features an automatic closing spring for ease of use. Its durable material ensures longevity.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
329.07.750_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_TR
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

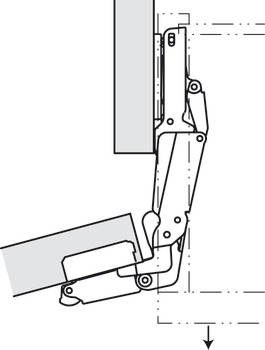

The Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.750 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for full overlay mounting, providing excellent compatibility with wooden doors. With an opening angle of 165 degrees, it allows for a wide access area. The product features an automatic closing spring, although it does not include a soft closing mechanism. The hinge arm is made of steel, while the cup is constructed from zinc alloy, enhancing durability.

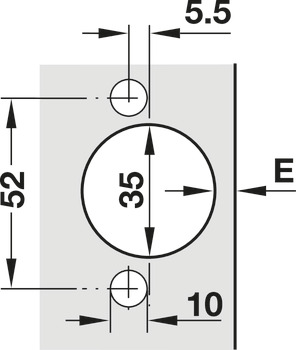

Designed for easy installation, this product ensures that doors close properly. The cup drilling depth is 11 mm with a diameter of 35 mm, allowing for straightforward mounting. It also offers side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment of +2.8 mm, providing flexibility during installation.
The Concealed hingeMetalla 510 A/SM 165° stands out as a practical and aesthetic solution for wooden doors, offering durability and ease of use.
