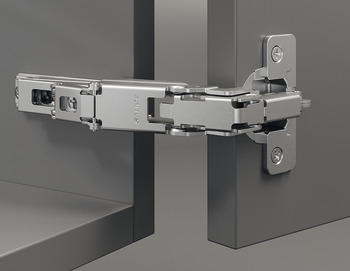

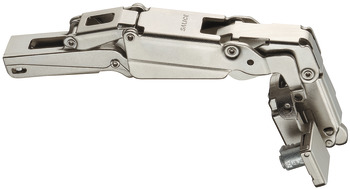

Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.730 by Hafele — This hinge is ideal for cabinets with internal pull outs or extending trays. Made from durable steel and zinc alloy, it ensures long-lasting performance.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
ISO_9001_ENG
329.07.730_Safety notes
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

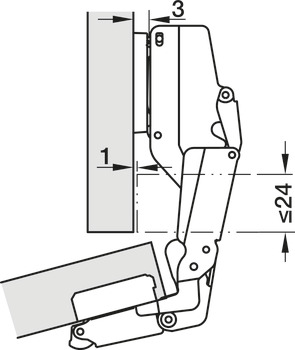

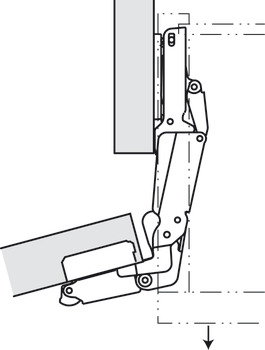

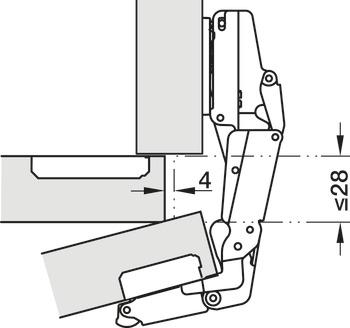

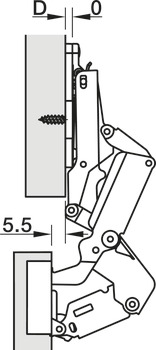

The Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.730 by Hafele represents a refined fusion of quality and functionality. This hinge model is designed for full overlay mounting, making it perfect for cabinets with internal pull outs or extending trays. Its automatic closing spring ensures that doors close smoothly every time, while its construction from steel and zinc alloy enhances durability.

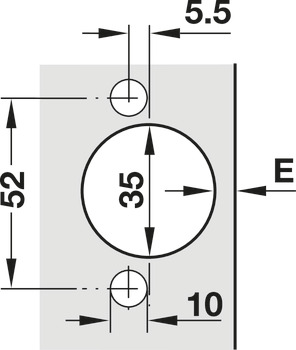

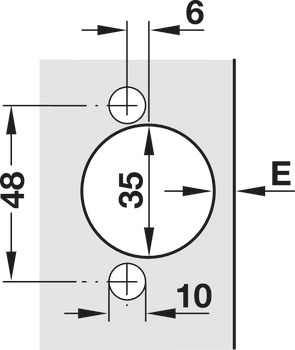

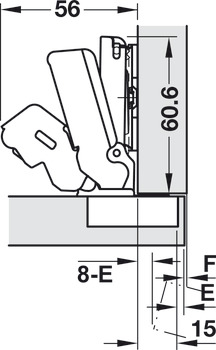

With a 165° opening angle, it provides ample access space. The cup drilling is 35 mm in diameter and 11 mm deep, allowing for easy installation. The adjustment features include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm.
The Concealed hingeMetalla 510 A/SM 165° stands out with its robust design and functionality. It is an ideal choice for those seeking a long-lasting and practical solution.
