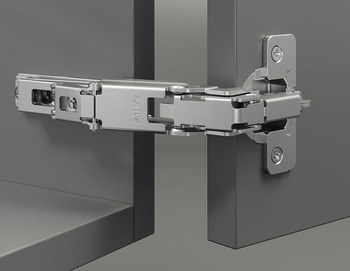

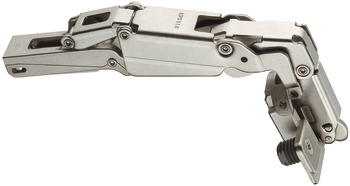

Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.710 by Hafele — designed for cabinets with internal pull-outs, this hinge offers automatic closing for practical use. Made from durable steel and zinc alloy, it ensures long-lasting performance.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_27001_ENG
329.07.710_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 165°, full overlay mounting - 329.07.710 by Hafele represents a refined fusion of quality and functionality. This hinge features full overlay mounting, allowing cabinet doors to achieve an aesthetically pleasing look. With an automatic closing spring, it ensures a user-friendly experience while lacking a soft closing mechanism for straightforward operation.

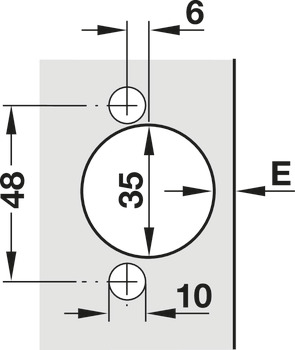

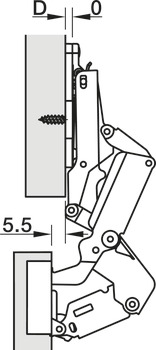

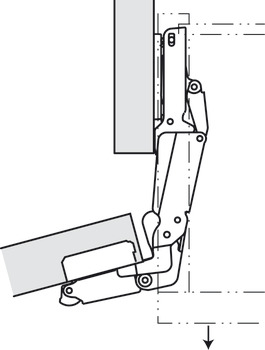

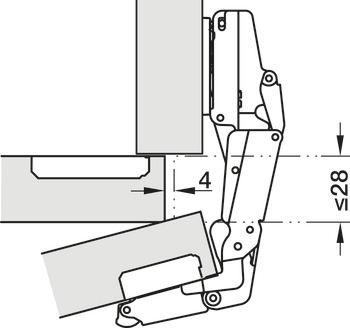

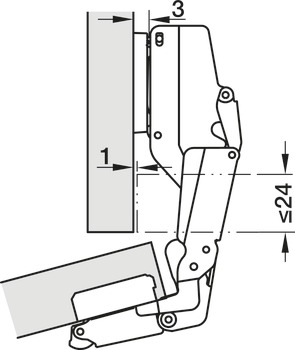

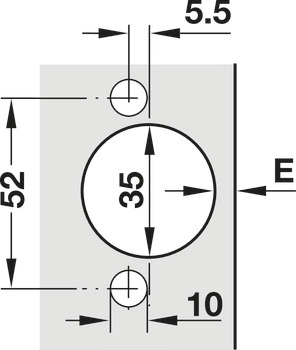

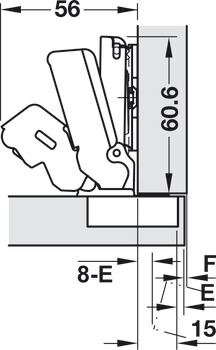

Constructed from high-quality steel and zinc alloy, this hinge promises durability and longevity. It boasts a 165° opening angle, providing ample access space. The cup drilling depth of 11 mm and a diameter of 35 mm facilitate easy installation. The adjustment features include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, as well as with Metalla 510 SM mounting plates from -0.5/+2.8 mm.
The Concealed hingeMetalla 510 A/SM stands out with its user-oriented design and functionality. Its high-quality materials and features make it a reliable choice for various furniture applications.
