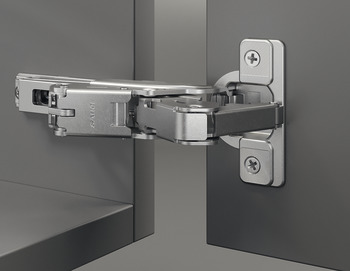

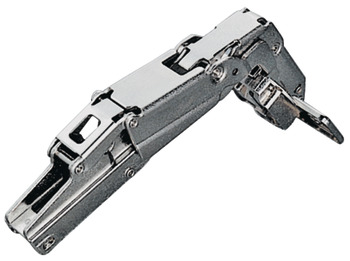

Concealed hingeMetalla 510 A/SM 155°, half overlay mounting/twin mounting - 329.29.606 by Hafele — Designed for thin doors, this hinge features an automatic closing spring for practical use. Made from durable steel and zinc alloy.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
329.29.606_Safety notes
ISO_27001_ENG
ISO_27001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 155°, half overlay mounting/twin mounting - 329.29.606 by Hafele represents a refined fusion of quality and functionality. Designed for thin doors, this hinge features an automatic closing spring and does not include a soft closing mechanism. Its high cranked design is ideal for wooden doors, ensuring durability and longevity.

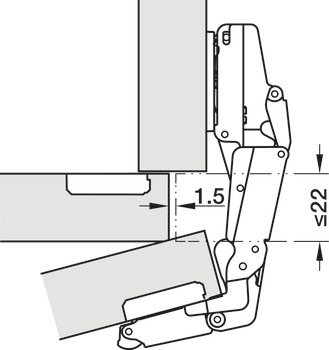

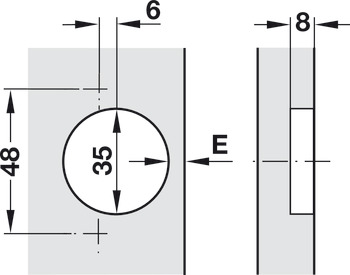

This hinge accommodates cup drilling for easy installation and provides a 155° opening angle for wide access. It requires a cup drilling depth of 8 mm and a diameter of 35 mm, allowing for screw fixing with a drilling pattern of 48/6. The adjustment features include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates by +2.8 mm, ensuring flexibility during installation.
The Concealed hingeMetalla 510 A/SM stands out with its practical use and durable construction. It is an excellent choice for those seeking a long-lasting and functional solution.
