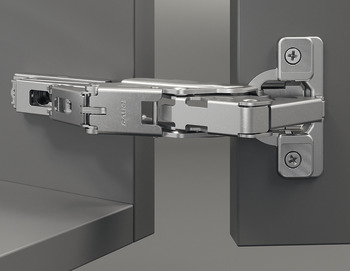

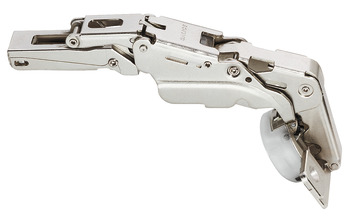

Concealed hingeMetalla 510 A/SM 155°, full overlay mounting - 329.29.334 by Hafele — This hinge is perfect for cabinets with internal pull-outs or extending trays. The high-quality zinc alloy cup and durable steel hinge arm ensure long-lasting use.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_ENG
ISO_9001_TR
329.29.334_Safety notes
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 155°, full overlay mounting - 329.29.334 by Hafele represents a refined fusion of quality and functionality. This hinge is ideal for cabinets with internal pull-outs and extending trays. It features an automatic closing spring that allows the doors to close gently and quietly. Made from high-quality zinc alloy and steel, this hinge guarantees durability and a long service life.

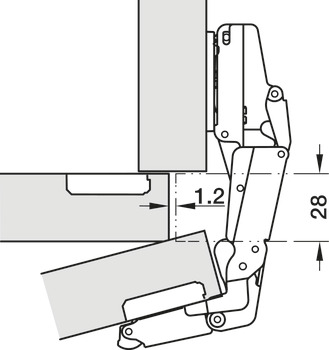

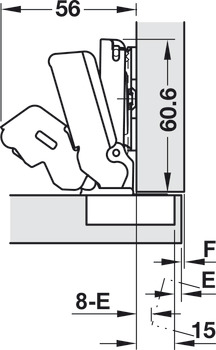

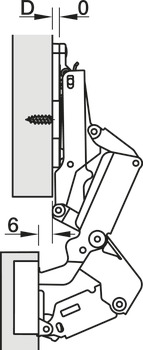

Its installation is straightforward, designed for wooden doors that require cup drilling. With an opening angle of 155°, it provides ample access. The cup drilling depth is 13.50 mm, and the cup diameter is 35 mm. It can be fixed with screws and offers side, height, and depth adjustments for perfect alignment.
The Concealed hingeMetalla 510 A/SM 155° stands out for its functionality and durability. It is a reliable choice backed by Hafele's quality.
