Concealed hingeMetalla 510 A/SM 155°, full overlay mounting - 329.29.217 by Hafele — Ideal for cabinets with internal pull-outs or extending trays. Made from durable materials, it features an automatic closing mechanism.
Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
329.29.217_Safety notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

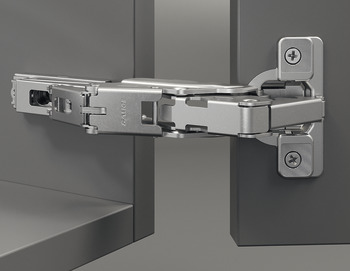

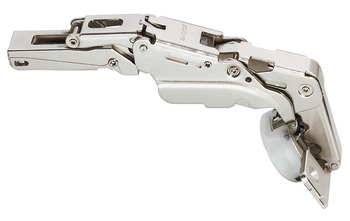

The Concealed hingeMetalla 510 A/SM 155°, full overlay mounting - 329.29.217 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for cabinets with internal pull-outs or extending trays, offering a perfect full overlay mounting solution. It features an automatic closing spring and a soft closing mechanism, ensuring a quiet and smooth operation. The product is made from a zinc alloy cup and a steel hinge arm, providing exceptional durability.

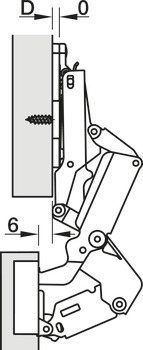

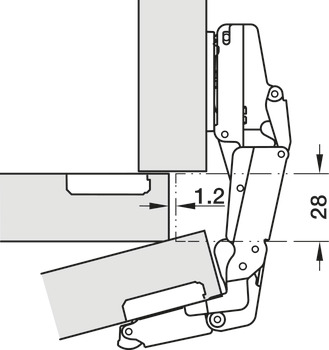

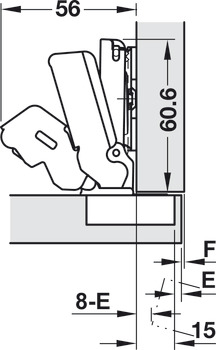

With an opening angle of 155°, it allows for wide access to cabinet interiors. The cup drilling depth is 13.50 mm, and the diameter is 35 mm, making installation straightforward. The adjustment facility includes side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, ensuring flexibility during installation. This hinge can be mounted on cabinets using either the slide-on system A or the quick fixing system SM.
The Concealed hingeMetalla 510 A/SM stands out with its automatic closing and soft closing features, making it a preferred choice for quality cabinetry.
