Furniture Hinges

Concealed hingeMetalla 510 A/SM 120°, full overlay mounting - 329.03.640

HAFELE

Concealed hingeMetalla 510 A/SM 120°, full overlay mounting - 329.03.640 by Hafele — This product provides a convenient opening angle for standard applications.

Properties

Product Code: 329.03.640
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
329.03.640_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

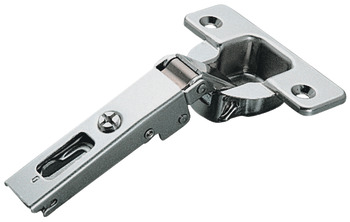

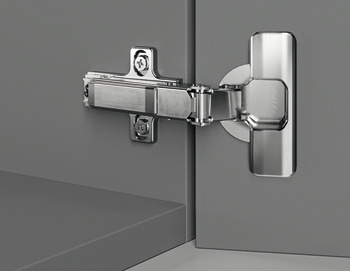

The Concealed hingeMetalla 510 A/SM 120°, full overlay mounting - 329.03.640 by Hafele represents a refined fusion of quality and functionality. This hinge features an automatic closing spring and lacks a soft closing mechanism, ensuring a seamless closure. Designed for full overlay, it allows doors to close completely, providing an aesthetically pleasing finish.

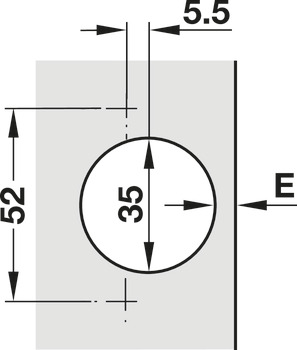

Constructed from steel and finished with nickel plating, this hinge is durable and designed specifically for wooden doors. With an opening angle of 120°, it offers ease of use and accessibility. The cup drilling depth is 11 mm with a diameter of 35 mm, facilitating straightforward installation.

This hinge provides a quick fixing system for door installation, allowing for easy adjustments. Side adjustment ranges from -1.5/+4.5 mm, height adjustment is ±2 mm, and depth adjustment can be made with Metalla 510 A mounting plates by +2.8 mm. The drilling pattern 45/9.5 is available upon request. The unique advantages of this product include its durability and elegant design, making it a preferred choice in various furniture applications.
