Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.663 by Hafele — Designed for standard applications, it provides a seamless solution for wooden doors. Crafted from durable steel, it ensures long-lasting performance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

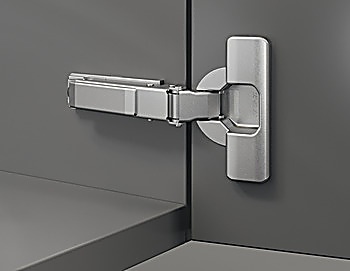

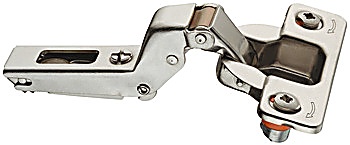

The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.663 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for inset mounting, offering a 110° opening angle that allows for a wide access area. Made from steel and finished with nickel plating, it not only enhances durability but also adds an aesthetic touch.

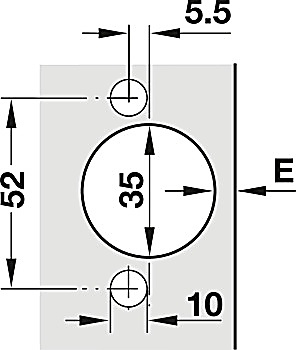

This concealed hinge is ideal for wooden doors, providing a practical solution during installation with cup drilling of 35 mm diameter and 11 mm depth. Additionally, it features various adjustment options, including side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment, ensuring flexibility during the mounting process.
Hafele's Concealed hingeMetalla 510 A/SM 110° stands out by combining aesthetics and functionality, making it an excellent choice for various applications.
