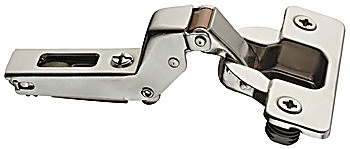

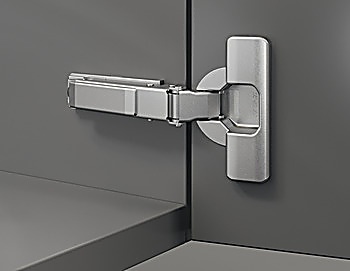

Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.613 by Hafele — designed for standard applications, this hinge is ideal for wooden doors. Its durable steel construction ensures long-lasting use.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_9001_TR
ISO_27001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.613 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for wooden doors and provides an excellent solution for standard applications. With an opening angle of 110°, it allows doors to open and close smoothly. Its steel material ensures high durability, while the nickel plating offers an aesthetic finish.

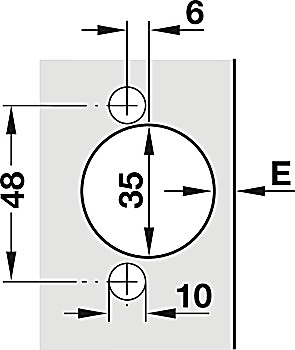

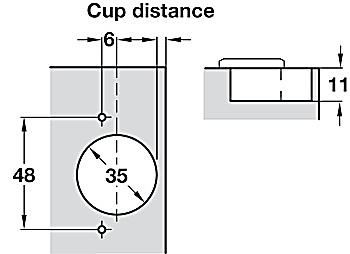

This concealed hinge features cup drilling for easy installation. It has a cup drilling depth of 11 mm and a diameter of 35 mm, making it convenient for assembly. The adjustment facility includes side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, and with Metalla 510 SM mounting plates from -0.5/+2.8 mm. These features provide flexibility and ease during installation.
The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.613 stands out for its unique strengths, offering both aesthetic and functional benefits for door installations.
