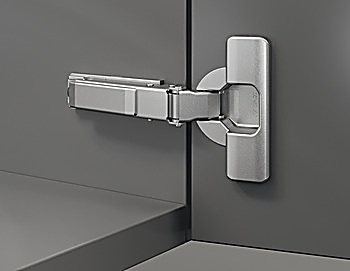

Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.570 by Hafele — This hinge is designed for standard applications, providing an ideal solution for wood doors. Made from high-quality steel, it stands out for its durability and longevity.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

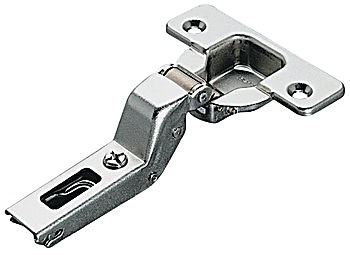

The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.570 by Hafele represents a refined fusion of quality and functionality. This hinge features an inset mounting design that elegantly complements the aesthetics of cabinets. With an opening angle of 110°, it allows for smooth operation of doors. The product is specifically designed for wood doors and is made from steel, ensuring exceptional durability.
The concealed hinge offers ease of installation with cup drilling depth of 11 mm and a cup drilling diameter of 35 mm. Additionally, the adjustment facilities include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, and with Metalla 510 SM mounting plates from -0.5/+2.8 mm. These features provide flexibility during installation.
The Concealed hingeMetalla 510 A/SM 110° stands out by providing both aesthetic appeal and functionality, making it an excellent choice for wood door installations.
