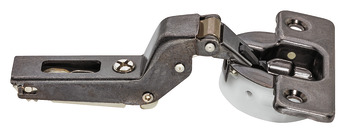

Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.383 by Hafele — This hinge is designed for standard applications, providing automatic closing and soft closing mechanisms for secure door closure. Its durable steel construction ensures long-lasting performance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
329.17.383_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

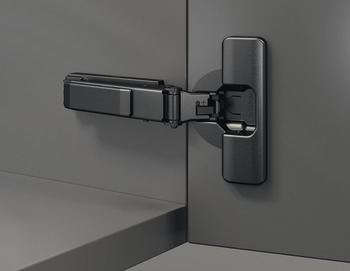

The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.383 by Hafele represents a refined fusion of quality and functionality. With a high opening angle of 110°, this hinge allows for wider door access while providing automatic closing and soft closing mechanisms for enhanced security. Made from robust steel, it ensures durability and aesthetic appeal with its inset mounting feature.

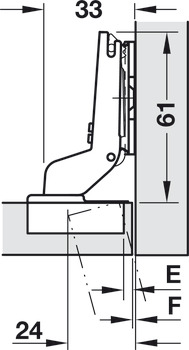

This hinge simplifies door installation with its user-friendly adjustment capabilities. The side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates (+2.8 mm) or Metalla 510 SM mounting plates (-0.5/+2.8 mm) make it versatile for various applications. The screw fixing for cup ensures reliable installation.
The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.383 stands out for its unique blend of functionality and aesthetic appeal, making it an essential choice for modern door installations.
