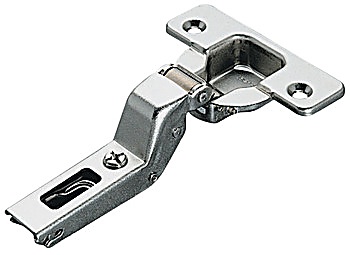

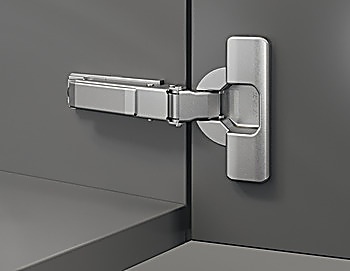

Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.103 by Hafele — This hinge allows for a clean and elegant door opening and closing mechanism. Made from high-quality steel, it ensures durability and longevity.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.17.103 by Hafele represents a refined fusion of quality and functionality. Designed for standard applications, it is compatible with wooden doors and features a stylish nickel-plated finish that enhances its aesthetic appeal. The hinge allows for a 110° opening angle, making it ideal for smooth door operations.

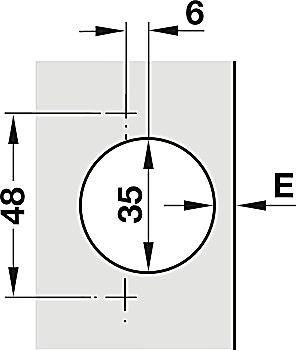

With cup drilling for easy assembly, this hinge provides excellent adjustability. Users can benefit from side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, ensuring precise alignment during installation. The hinge is designed for use with either slide-on system A or quick fixing system SM, making it versatile for various cabinet types.
The Concealed hingeMetalla 510 A/SM 110° stands out with its unique features and benefits, making it a preferred choice for modern cabinetry.
