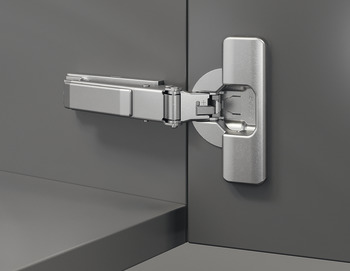

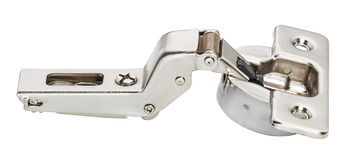

Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.15.745 by Hafele — This product is designed for standard applications and features automatic closing and soft closing mechanisms for secure door closure. Made from high-quality steel, it ensures durability and reliability.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
329.15.745_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.15.745 by Hafele represents a refined fusion of quality and functionality. This hinge is designed with a high crank type and is made from durable steel, ensuring longevity and reliability. With an opening angle of 110°, it allows doors to open wide, while the automatic closing spring and soft closing mechanism enhance user comfort.

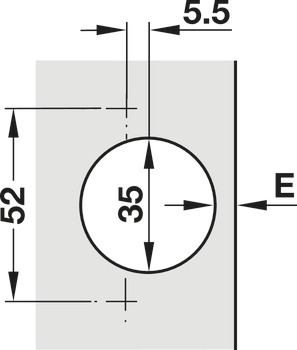

The high crank design helps maintain proper alignment between the door and cabinet, while the steel material increases the hinge's durability against external factors. Additionally, this hinge is specifically designed for wooden doors and requires cup drilling for installation.

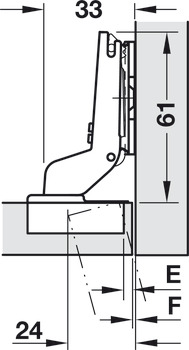

This hinge offers adjustment facilities including side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm. Installation can be done using slide-on system A or quick fixing system SM. Designed for screw fixing, Hafele's Concealed hingeMetalla 510 A/SM 110°, inset mounting - 329.15.745 stands out with its durability and functionality, making it ideal for various applications.
