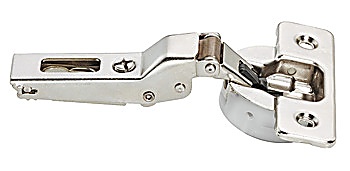

Concealed hingeMetalla 510 A/SM 110°, half overlay mounting/twin mounting - 329.15.773 by Hafele — This product is designed for standard applications, featuring automatic closing and soft closing mechanisms for secure door closure. The durable steel material ensures long-lasting performance.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

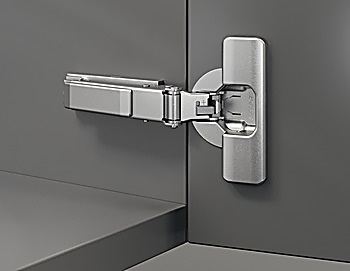

The Concealed hingeMetalla 510 A/SM 110°, half overlay mounting/twin mounting - 329.15.773 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for half overlay mounting and twin mounting options, making door installation significantly easier. With an automatic closing spring, it ensures doors close securely, while the soft closing mechanism provides a quiet and gentle closure. Specifically designed for wooden doors, it comes with cup drilling for easy assembly.

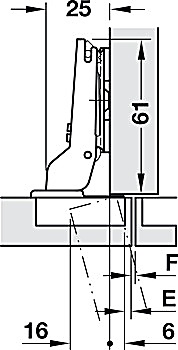

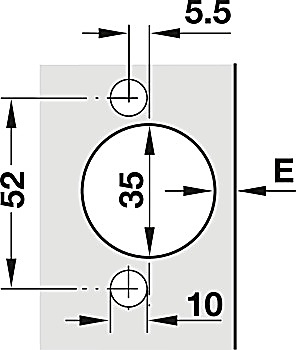

Featuring a 110° opening angle, it allows for a wide access area. The cup drilling depth is 13.50 mm with a cup drilling diameter of 35 mm. For installation, it offers side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment options with Metalla 510 A mounting plates of +2.8 mm and with Metalla 510 SM mounting plates ranging from -0.5/+2.8 mm.
The Concealed hingeMetalla 510 A/SM stands out for its unique advantages and high quality, making it a preferred choice for door installations.
