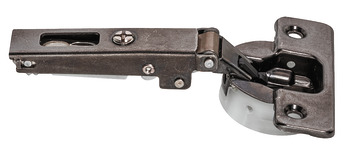

Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.790

HAFELE

Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.790 by Hafele — Provides a stylish closure for your doors while ensuring automatic closing functionality.

Properties

Product Code: 329.17.790
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
329.17.790_Safety notes
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

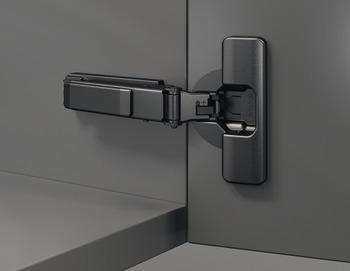

The Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.790 by Hafele represents a refined fusion of quality and functionality. This hinge features an automatic closing spring and a soft closing mechanism, allowing doors to close quietly and gently. Designed for full overlay mounting, it enhances the aesthetic appeal of wooden doors.

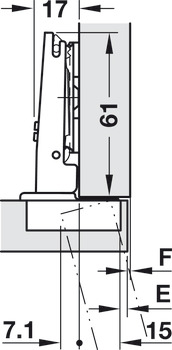

Constructed from durable steel, the hinge offers a 110° opening angle, providing a wide access range. With a cup drilling depth of 13.50 mm and a cup drilling diameter of 35 mm, installation is straightforward. The adjustment facilities include side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, while Metalla 510 SM mounting plates allow for -0.5/+2.8 mm depth adjustment.

Installation can be done using either the slide-on system A or the quick fixing system SM. The cup fixing is designed for screw fixing, ensuring a secure fit. This product is an excellent choice for enhancing both the appearance and functionality of your doors.
