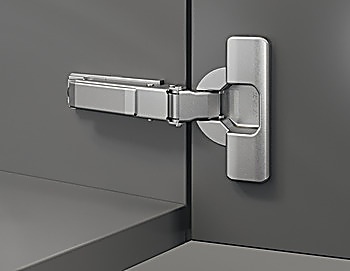

Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.350 by Hafele — This concealed hinge design ensures complete door closure. Durable steel material quality provides long-lasting use.
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image
The Concealed hingeMetalla 510 A/SM 110°, full overlay mounting - 329.17.350 by Hafele represents a refined fusion of quality and functionality. This hinge, with full overlay mounting, provides an aesthetic finish while ensuring perfect compatibility with wooden doors. The use of steel material enhances the durability of the hinge, offering a long-lasting solution.

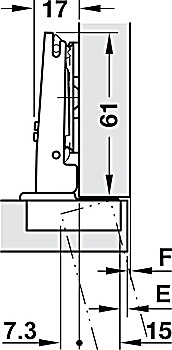

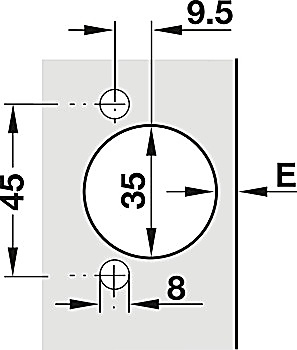

The 110° opening angle allows for smooth door operation. Additionally, the cup drilling depth is 11 mm, making installation straightforward. The hinge is user-friendly with side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment options using Metalla 510 A mounting plates +2.8 mm and Metalla 510 SM plates from -0.5/+2.8 mm. The mounting can be done quickly with slide-on system A or quick fixing system SM.
The Concealed hingeMetalla 510 A/SM stands out by combining aesthetics and functionality, catering to users' needs with its adjustment capabilities ensuring perfect fit after installation.
