Concealed hingeMetalla 510 A/SM 105°, inset mounting - 329.23.640

HAFELE

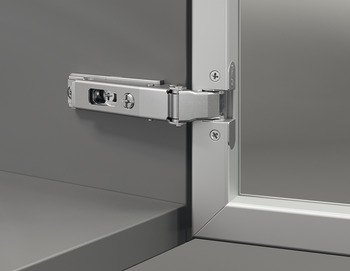

Concealed hingeMetalla 510 A/SM 105°, inset mounting - 329.23.640 by Hafele — An ideal hinge solution for narrow aluminum frames.

Properties

Product Code: 329.23.640
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 1.7
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
329.23.640_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

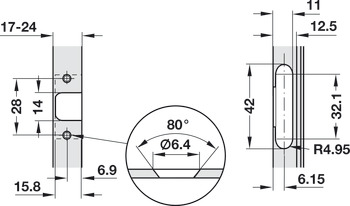

The Concealed hingeMetalla 510 A/SM 105°, inset mounting - 329.23.640 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for narrow aluminum frames with a frame width ranging from 17 mm to 24 mm. It features an automatic closing spring, without a soft closing mechanism, providing a practical user experience with its high cranked arm design.

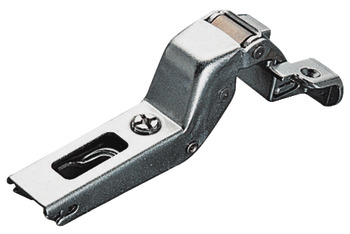

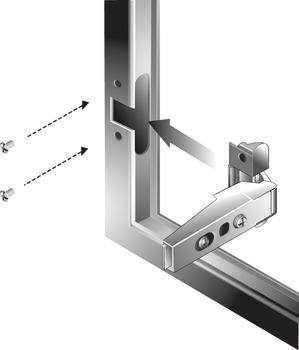

Suitable for aluminum frame doors, this hinge does not require door processing for assembly. Made from durable zinc alloy for the cup and steel for the hinge arm, it boasts a stylish nickel-plated finish. With an opening angle of 105°, it allows for versatile applications, and the cup fixing is designed for screw fixing. Installation can be done using either the slide-on system A or the quick fixing system SM.

The Concealed hingeMetalla 510 A/SM 105° stands out with its unique strengths and is a reliable choice for those seeking both aesthetics and functionality.
