Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information
Product Attribute Symbols
Dimensions
Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information
Assembly and Installation Instructions
Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.
Care and Cleaning Instructions
Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.
Safety and Quality Documents
ISO_27001_TR
ISO_27001_ENG
Güvenlik Notları--Security Notes
348.31.533_Safety notes
ISO_9001_ENG
Images
Pricing and Payment Conditions
Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.
Warranty and Servicing Information
Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.
References
No image

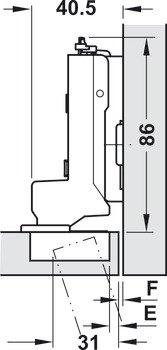

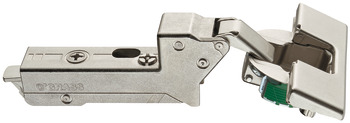

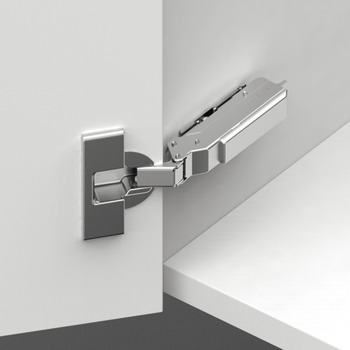

The Concealed hinge, Tiomos 110°, inset mounting - 348.31.533 by Hafele represents a refined fusion of quality and functionality. This hinge allows wooden doors to close smoothly while offering an aesthetically pleasing look. Made from high-quality steel and zinc alloy, it enhances durability and performance. With a 110° opening angle, it provides a wide range of motion for doors.

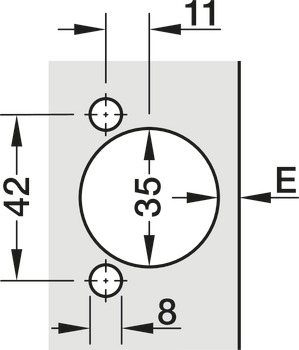

The installation process is straightforward; the door can be mounted using a clip system without any tools. Additionally, the hinge features easy adjustments; side adjustment of ±2 mm, height adjustment of ±2.5 mm, and depth adjustment of -2/+3 mm can be made easily. The cup drilling depth is 12.60 mm with a diameter of 35 mm.
The Concealed hinge, Tiomos 110°, inset mounting - 348.31.533 stands out for its unique combination of aesthetics and functionality, making it a preferred choice for various applications.
