Furniture Hinges

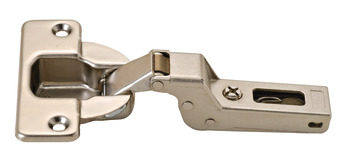

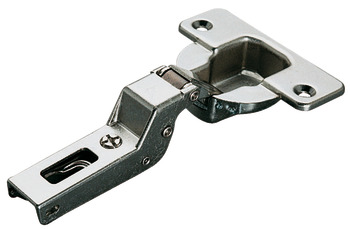

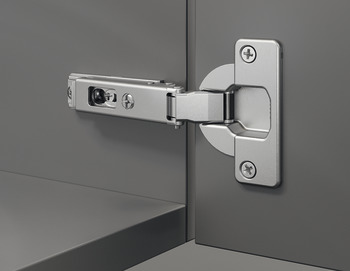

Concealed hinge Metalla 510 A/SM 94° for wooden doors - 329.05.614

HAFELE

Download Product ID Card

Download Product Files

Concealed hinge Metalla 510 A/SM 94° for wooden doors - 329.05.614 by Hafele — an ideal solution for wooden doors.

Properties

Product Code: 329.05.614
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Steel, Hinge arm: Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG
329.05.614_Safety notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

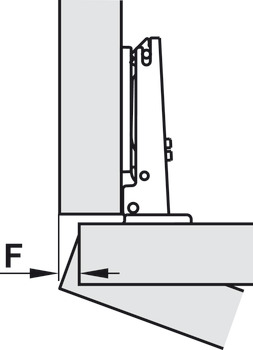

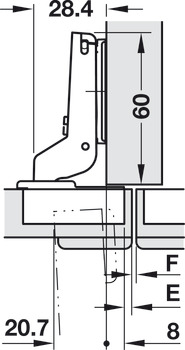

The Concealed hinge Metalla 510 A/SM 94° for wooden doors - 329.05.614 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden doors and is compatible with profile doors up to 40 mm. It features an automatic closing spring but does not include a soft closing mechanism. The hinge can be installed using half overlay mounting or twin mounting options.

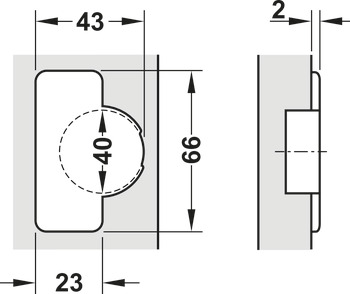

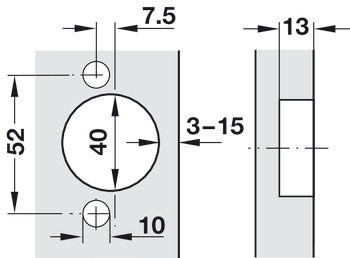

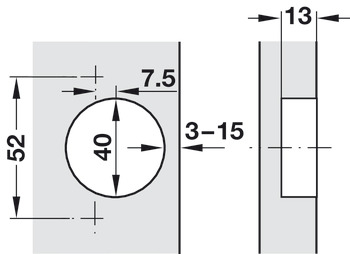

Designed with a straight crank type, the hinge requires cup drilling for assembly. The product material consists of steel for the cup and zinc alloy for the hinge arm, finished with a nickel plating. It offers an opening angle of 94°, with a cup drilling depth of 13 mm and a cup drilling diameter of 40 mm. The cup fixing is designed for screw fixing, ensuring secure installation.

The Concealed hinge Metalla 510 A/SM 94° - 329.05.614 stands out with its robust design and functional features, making it an excellent choice for door installations. It is ideal for those seeking a reliable and long-lasting solution.
