Concealed hinge Metalla 510 A/SM 110° for glass doors - 329.26.625

HAFELE

Concealed hinge Metalla 510 A/SM 110° for glass doors - 329.26.625 by Hafele — An ideal hinge solution for glass and mirror doors.

Properties

Product Code: 329.26.625
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_9001_TR
329.26.625_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

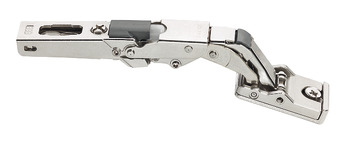

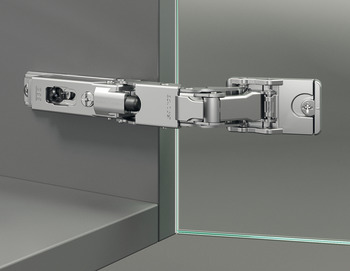

The Concealed hinge Metalla 510 A/SM 110° for glass doors - 329.26.625 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for glass and mirror doors, allowing installation without the need for glass drilling. The full overlay version ensures an aesthetically pleasing installation while providing robust support. Made from zinc alloy and steel, this hinge is finished with a nickel plating that enhances both durability and appearance.

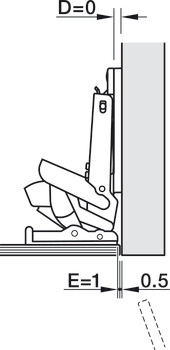

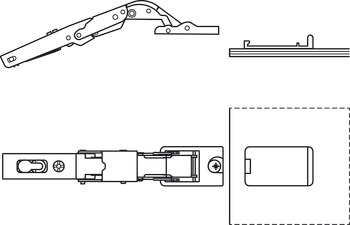

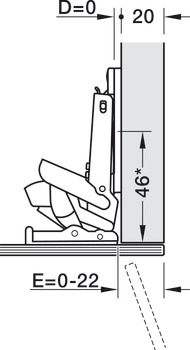

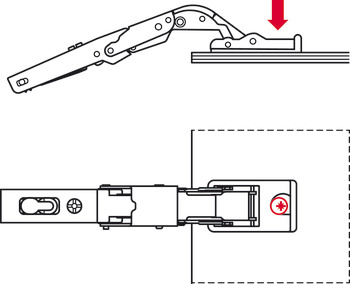

With an opening angle of 110 degrees, this hinge offers a wide access area, making it practical for various applications. The adhesive fixing feature simplifies installation, providing a user-friendly experience. The hinge allows for side adjustment of -1.5/+4.5 mm, height adjustment of ±2 mm, and depth adjustment with Metalla 510 A mounting plates of +2.8 mm, as well as with Metalla 510 SM mounting plates from -0.5/+2.8 mm.

The Concealed hinge Metalla 510 A/SM 110° stands out with its elegant design and functionality, making it an excellent choice for glass doors.
