Concealed hinge Metalla 510 A/SM 110° - 329.26.702

HAFELE

Concealed hinge Metalla 510 A/SM 110° - 329.26.702 by Hafele — A high-quality hinge designed for doors made from special materials.

Properties

Product Code: 329.26.702
Category: Furniture Hinges

Material Properties

Used Material:
Cup: Zinc alloy, Hinge arm: Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
329.26.702_Safety notes
ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

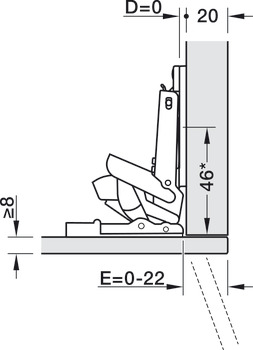

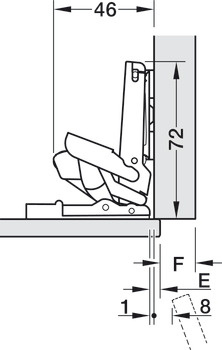

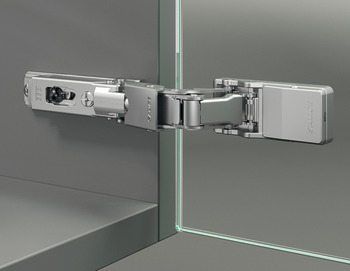

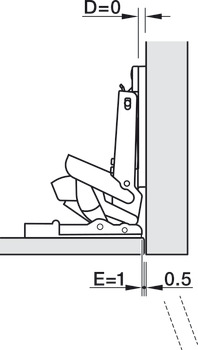

The Concealed hinge Metalla 510 A/SM 110° - 329.26.702 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for doors made from special materials with a minimum thickness of 8 mm, such as metal, ceramic, cement, or quartz composites. The full overlay concealed hinge version provides an aesthetic solution without compromising the door's appearance. The product features a hinge arm made of steel and a cup made of zinc alloy, enhancing durability.

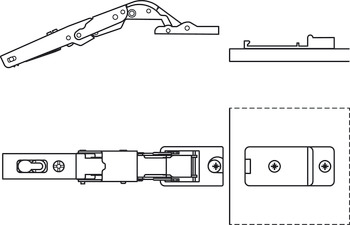

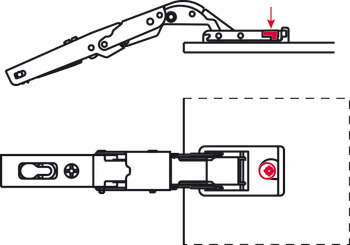

Additionally, the hinge offers an opening angle of 110°, facilitating smooth operation. It allows for screw fixing of the cup, providing practical usability. The side adjustment ranges from -1.5/+4.5 mm, height adjustment is ±2 mm, and depth adjustment can be made with Metalla 510 A mounting plates +2.8 mm and with Metalla 510 SM mounting plates from -0.5/+2.8 mm.

The Concealed hinge Metalla 510 A/SM 110° - 329.26.702 stands out with its high quality and functionality. Its aesthetic appearance and practical use make it an excellent choice for your projects.
